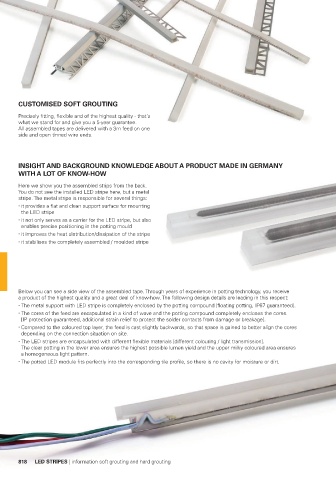

CUSTOMISED SOFT GROUTING
Precisely fitting, flexible and of the highest quality - that's
what we stand for and give you a 5-year guarantee.
All assembled tapes are delivered with a 3m feed on one
side and open tinned wire ends.
INSIGHT AND BACKGROUND KNOWLEDGE ABOUT A PRODUCT MADE IN GERMANY
WITH A LOT OF KNOW-HOW
Here we show you the assembled strips from the back.
You do not see the installed LED stripe here, but a metal
stripe. The metal stripe is responsible for several things:
it provides a flat and clean support surface for mounting
the LED stripe
it not only serves as a carrier for the LED stripe, but also
enables precise positioning in the potting mould
it improves the heat distribution/dissipation of the stripe
it stabilises the completely assembled / moulded stripe
Below you can see a side view of the assembled tape. Through years of experience in potting technology, you receive
a product of the highest quality and a great deal of know-how. The following design details are leading in this respect:
The metal support with LED stripe is completely enclosed by the potting compound [floating potting, IP67 guaranteed].
The cores of the feed are encapsulated in a kind of wave and the potting compound completely encloses the cores.
[IP protection guaranteed, additional strain relief to protect the solder contacts from damage or breakage].
Compared to the coloured top layer, the feed is cast slightly backwards, so that space is gained to better align the cores
depending on the connection situation on site.
The LED stripes are encapsulated with different flexible materials [different colouring / light transmission].
The clear potting in the lower area ensures the highest possible lumen yield and the upper milky coloured area ensures
a homogeneous light pattern.
The potted LED module fits perfectly into the corresponding tile profile, so there is no cavity for moisture or dirt.
