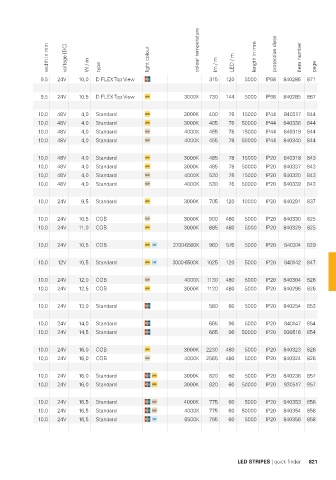

Page 823 - Deko-light Catalogue 2022
P. 823
width in mm voltage [DC] W / m type light colour colour temperature lm / m LED / m length in mm protection class item number page
9,5 24V 10,0 D FLEX Top View 315 120 5000 IP68 840286 871
9,5 24V 10,5 D FLEX Top View 3000K 730 144 5000 IP68 840285 867
10,0 48V 4,0 Standard 3000K 400 78 15000 IP44 840317 844
10,0 48V 4,0 Standard 3000K 405 78 50000 IP44 840338 844
10,0 48V 4,0 Standard 4000K 455 78 15000 IP44 840319 844
10,0 48V 4,0 Standard 4000K 455 78 50000 IP44 840340 844
10,0 48V 4,0 Standard 3000K 485 78 15000 IP20 840318 843
10,0 48V 4,0 Standard 3000K 485 78 50000 IP20 840337 843
10,0 48V 4,0 Standard 4000K 530 78 15000 IP20 840320 843
10,0 48V 4,0 Standard 4000K 530 78 50000 IP20 840339 843
10,0 24V 9,5 Standard 3000K 705 120 10000 IP20 840291 837
10,0 24V 10,5 COB 3000K 900 480 5000 IP20 840330 825
10,0 24V 11,0 COB 3000K 885 480 5000 IP20 840329 825
10,0 24V 10,5 COB 2700-6500K 960 576 5000 IP20 840374 829
10,0 12V 10,5 Standard 3000-6500K 1025 120 5000 IP20 840142 847
10,0 24V 12,0 COB 4000K 1130 480 5000 IP20 840304 826
10,0 24V 12,5 COB 3000K 1120 480 5000 IP20 840296 826
10,0 24V 13,0 Standard 580 60 5000 IP20 840254 853
10,0 24V 14,0 Standard 665 96 5000 IP20 840147 854
10,0 24V 14,5 Standard 665 96 50000 IP20 930516 854
10,0 24V 16,0 COB 3000K 2230 480 5000 IP20 840323 826
10,0 24V 16,0 COB 4000K 2565 480 5000 IP20 840324 826
10,0 24V 16,0 Standard 3000K 820 60 5000 IP20 840236 857
10,0 24V 16,0 Standard 3000K 820 60 50000 IP20 930517 857
10,0 24V 16,5 Standard 4000K 775 60 5000 IP20 840353 858
10,0 24V 16,5 Standard 4000K 775 60 50000 IP20 840354 858
10,0 24V 16,5 Standard 6500K 795 60 5000 IP20 840356 858
LED STRIPES | quick finder 821
