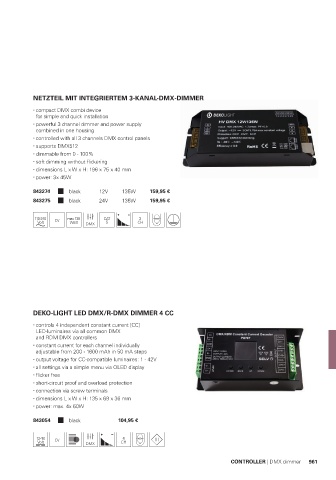

Page 963 - Deko-light Catalogue 2022
P. 963
NETZTEIL MIT INTEGRIERTEM 3-KANAL-DMX-DIMMER
compact DMX combi device
for simple and quick installation
powerful 3 channel dimmer and power supply
combined in one housing
controlled with all 3 channels DMX control panels
supports DMX512
dimmable from 0 - 100%
soft dimming without flickering
dimensions L x W x H: 196 x 75 x 40 mm
power: 3x 45W
843274 black 12V 135W 159,95 €
843275 black 24V 135W 159,95 €
110-240 CV max 135 CAT 3
5
DEKO-LIGHT LED DMX/R-DMX DIMMER 4 CC
controls 4 independent constant current [CC]
LED-luminaires via all common DMX
and RDM DMX controllers
constant current for each channel individually
adjustable from 200 - 1600 mAh in 50 mA steps
output voltage for CC-compatible luminaires: 1 - 42V
all settings via a simple menu via OLED display
flicker free
short-circuit proof and overload protection
connection via screw terminals
dimensions L x W x H: 135 x 69 x 36 mm
power: max. 4x 60W
843054 black 104,95 €
12-48 CV 4
CONTROLLER | DMX dimmer 961
