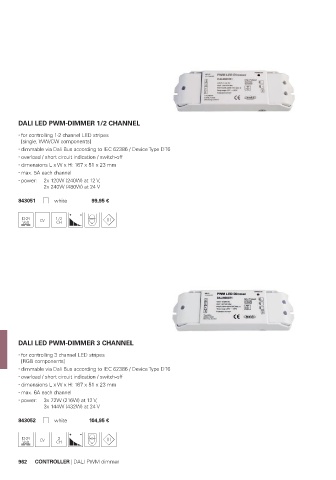

Page 964 - Deko-light Catalogue 2022
P. 964
DALI LED PWM-DIMMER 1/2 CHANNEL
for controlling 1-2 channel LED stripes
[single, WW/CW components]
dimmable via Dali Bus according to IEC 62386 / Device Type DT6
overload / short circuit indication / switch-off
dimensions L x W x H: 167 x 51 x 23 mm
max. 5A each channel
power: 2x 120W (240W) at 12 V,
2x 240W (480W) at 24 V
843051 white 99,95 €
12-24 CV 1 / 2
DALI LED PWM-DIMMER 3 CHANNEL
for controlling 3 channel LED stripes
[RGB components]
dimmable via Dali Bus according to IEC 62386 / Device Type DT6
overload / short circuit indication / switch-off
dimensions L x W x H: 167 x 51 x 23 mm With the kind support of SH-Lichttechnik, Pfullingen und Becks Reutlingen
max. 6A each channel
power: 3x 72W (216W) at 12 V,
3x 144W (432W) at 24 V
843052 white 104,95 €
12-24 CV 3
962 CONTROLLER | DALI PWM dimmer
