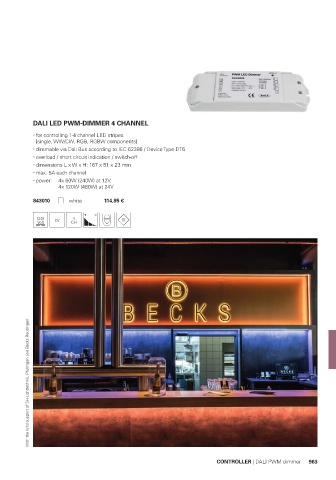

Page 965 - Deko-light Catalogue 2022
P. 965
DALI LED PWM-DIMMER 4 CHANNEL
for controlling 1-4 channel LED stripes
[single, WW/CW, RGB, RGBW components]
dimmable via Dali Bus according to IEC 62386 / Device Type DT6
overload / short circuit indication / switch-off
dimensions L x W x H: 167 x 51 x 23 mm
max. 5A each channel
power: 4x 60W (240W) at 12V,
4x 120W (480W) at 24V
843010 white 114,95 €
12-24 CV 4
