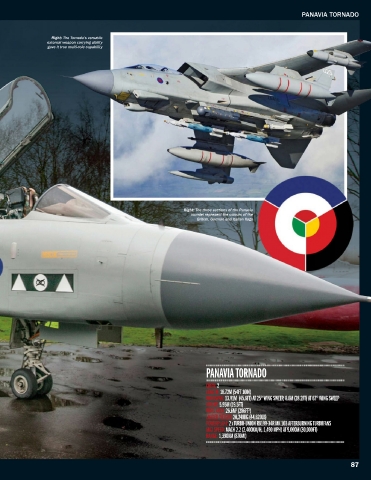

PANAVIA TORNADO
Right: The Tornado’s versatile
external weapon carrying ability
gave it true multi-role capability
Right: The three sections of the Panavia
roundel represent the colours of the
British, German and Italian l ags
PANAVIATORNADO
CREW: 2
LENGTH: 16.72M (54FT 10IN)
WINGSPAN: 13.91M (45.6FT) AT 25° WING SWEEP, 8.6M (28.2FT) AT 67° WING SWEEP
HEIGHT: 5.95M (19.5FT)
2
2
WING AREA: 26.6M (286FT )
LOADED WEIGHT: 20,240KG (44,620LB)
POWERPLANT: 2 X TURBO-UNION RB199-34R MK 103 AFTERBURNING TURBOFANS
MAX SPEED: MACH 2.2 (2,400KM/H, 1,490 MPH) AT 9,000M (30,000FT)
RANGE: 1,390KM (870MI)
