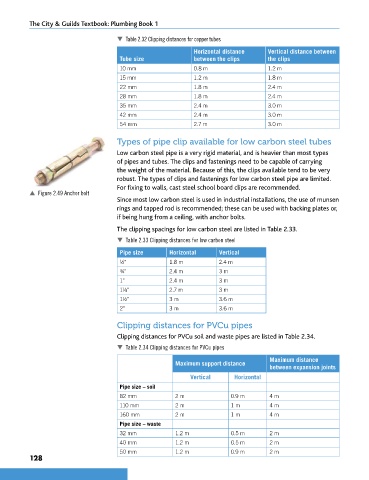

The City & Guilds Textbook: Plumbing Book 1

 Table 2.32 Clipping distances for copper tubes

Horizontal distance Vertical distance between
Tube size between the clips the clips
10 mm 0.8 m 1.2 m
15 mm 1.2 m 1.8 m
22 mm 1.8 m 2.4 m
28 mm 1.8 m 2.4 m
35 mm 2.4 m 3.0 m
42 mm 2.4 m 3.0 m
54 mm 2.7 m 3.0 m

Types of pipe clip available for low carbon steel tubes

Low carbon steel pipe is a very rigid material, and is heavier than most types
of pipes and tubes. The clips and fastenings need to be capable of carrying
the weight of the material. Because of this, the clips available tend to be very
robust. The types of clips and fastenings for low carbon steel pipe are limited.
For fixing to walls, cast steel school board clips are recommended.
p Figure 2.49 Anchor bolt
Since most low carbon steel is used in industrial installations, the use of munsen
rings and tapped rod is recommended; these can be used with backing plates or,
if being hung from a ceiling, with anchor bolts.

The clipping spacings for low carbon steel are listed in Table 2.33.
 Table 2.33 Clipping distances for low carbon steel

Pipe size Horizontal Vertical
½” 1.8 m 2.4 m
¾” 2.4 m 3 m
1” 2.4 m 3 m
1¼” 2.7 m 3 m
1½” 3 m 3.6 m
2” 3 m 3.6 m

Clipping distances for PVCu pipes

Clipping distances for PVCu soil and waste pipes are listed in Table 2.34.
 Table 2.34 Clipping distances for PVCu pipes
Maximum distance
Maximum support distance
between expansion joints
Vertical Horizontal
Pipe size – soil
82 mm 2 m 0.9 m 4 m
110 mm 2 m 1 m 4 m
160 mm 2 m 1 m 4 m
Pipe size – waste
32 mm 1.2 m 0.5 m 2 m
40 mm 1.2 m 0.5 m 2 m
50 mm 1.2 m 0.9 m 2 m
128
