26                        Applied Process Design for Chemical and Petrochemical  Plants

                     V-NO.
                     MATL.
                     SIZES                CHECK VALVES
                     CONN.                 DESCRIPTION
                     V-11            PISTON LIIT,  PRES. SEAL              ROCKWELL               ROCKWELL
                                     RATING:  600 psig@ 975°F              EDWARDS                EDWARDS
                     IX Cr.          BODY:  C.A.S. A-217 GR WC6            690                    694
                     2;1"-14"        STEM:                                 WC6                    WC6
                     600#            SEATS:  Integral Ste! Alloy           W'-6"                  8"-14"
                     RF              DISC:  Body-Guided
                     V-12            HORIZ.  PISTON, WELD CAP              ROCKWELL               VOGT
                                     RATING:  2500 psig @  650°F           ED\NARDS               SW-6933
                     cs              BODY:  C.S. A-216 Gr.  WCB            6674
                     W'-2"           STEM:
                     2500#           SEATS:  Integral, Stellited           l1"-2W'                W'-2"
                     SW              DISC:

                     V-13            HORIZ.  PISTON,  PRESS.  SEAL         ROCK.\-VELL            POWELL
                                     RATING:  2500@ 650°F                  EDWARDS                125065 WE
                     cs              BODY:  C.S.A.-216 Gr.  WCB            3994Y
                     2W'-12"         STEM:                                 WCB
                     2500#           SEATS:  Integral, Stellited           2}!:"-12"              2�"-10"
                     BW              DISC:  Piston Stellited                                      (5) (6)
                     v               Add additional valves of all types
                                     as needed for project

               NOTE:  1. Vertical  columns indicate valves acceptable as equivalent to the specification description.
                     2. V-11  is a  typical valve code to use on flowsheets and piping drawings.

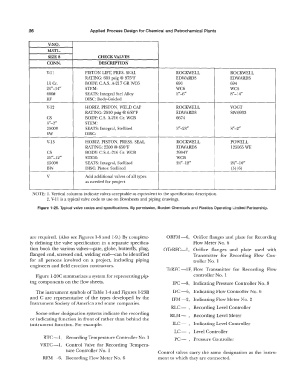

                 Figure 1-25. Typical valve codes and specifications.  By permission, Borden Chemicals and Plastics Operating Limited Partnership.






              are required.  (Also see Figures  1-8 and  1-9.)  By complete-   ORFM -6,  Orifice flanges  and  plate  for Recording
              ly  defining  the valve  specification  in  a  separate  specifica-   Flow Meter No.  6
              tion  book  the various  valves-gate,  globe,  butterfly,  plug,   OTrRFC-1,  Orifice  flanges  and  plate  used  with
              flanged end, screwed end, welding end--can be identified             Transmitter  for  Recording  Flow  Con-
              for  all  persons  involved  on  a  project,  including  piping      troller No.  1
              engineers and field erection contractors.
                                                                       TrRFC -lF,  Flow  Transmitter  for  Recording  Flow
                Figure l-20C summarizes a system for representing pip-             controller No.  1
              ing components on the flow sheets.                          IPC-8,  Indicating Pressure Controller No.  8

                The instrument symbols of  Table 1-4 and Figures 1-23B    IFC-6,  Indicating Flow Controller No.  6
              and  C  are  representative  of the  types  developed  by  the   IFM-2,  Indicating Flow Meter No.  2
              Instrument Society of  America and some companies.
                                                                         RLC-  ,  Recording Level Controller
                Some other designation systems indicate the recording    RLM -  ,  Recording Level Meter
              or indicating function in front of rather than behind the
              instrument function. For example:                           ILC - ,  Indicating Level Controller
                                                                          LC -  ,  Level Controller
                   RTC-1,  Recording Temperature Controller No.  1         PC -  ,  Pressure Controller
                  VRTC -1,  Control  Valve  for  Recording  Tempera-
                             ture Controller No.  1                 Control  valves  carry  the  same  designation  as  the  instru-
                   RFM-6,  Recording Flow Meter No.  6              ment to which they are connected.
