Page 129 - Template Tesis UTM v2.0

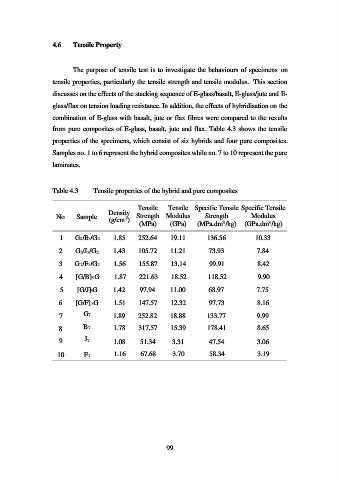

4.6 Tensile Property

The purpose of tensile test is to investigate the behaviours of specimens on

tensile properties, particularly the tensile strength and tensile modulus. This section

discusses on the effects of the stacking sequence of E-glass/basalt, E-glass/jute and E-
glass/flax on tension loading resistance. In addition, the effects of hybridisation on the

combination of E-glass with basalt, jute or flax fibres were compared to the results

from pure composites of E-glass, basalt, jute and flax. Table 4.3 shows the tensile
properties of the specimens, which consist of six hybrids and four pure composites.

Samples no. 1 to 6 represent the hybrid composites while no. 7 to 10 represent the pure
laminates.

Table 4.3 Tensile properties of the hybrid and pure composites

Tensile Tensile Specific Tensile Specific Tensile
Density
No Sample Strength Modulus Strength Modulus
3
(g/cm )
3
3
(MPa) (GPa) (MPa.dm /kg) (GPa.dm /kg)
1 G2/B3/G2 1.85 252.64 19.11 136.56 10.33
2 G2/J3/G2 1.43 105.72 11.21 73.93 7.84

3 G2/F3/G2 1.56 155.87 13.14 99.91 8.42

4 [G/B]3G 1.87 221.63 18.52 118.52 9.90

5 [G/J]3G 1.42 97.94 11.00 68.97 7.75

6 [G/F]3G 1.51 147.57 12.32 97.73 8.16
7 G7 1.89 252.82 18.88 133.77 9.99

8 B7 1.78 317.57 15.39 178.41 8.65

9 J7 1.08 51.34 3.31 47.54 3.06

10 F7 1.16 67.68 3.70 58.34 3.19

99
