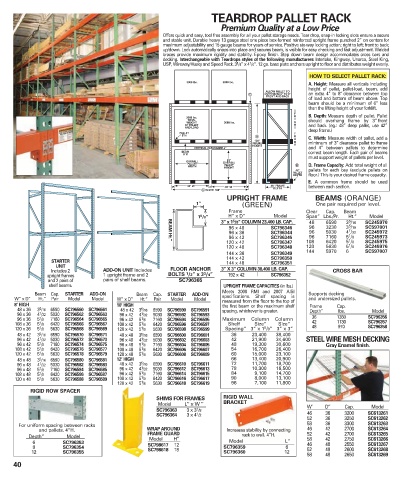

Page 40 - 2021-87 PMGSGLBL Material_Handling_Catalog_AP_V PMGS_Neat

TEARDROP PALLET RACK
Premium Quality at a Low Price
Offers quick and easy, tool free assembly for all your pallet storage needs. Tear drop, snap-in locking slots ensure a secure
and stable unit. Durable heavy 13 gauge steel one piece box-formed reinforced upright frame punched 2” on centers for
maximum adjustability and 15 gauge beams for years of service. Positive six-way locking action; right to left; front to back;
up/down. Lock automatically snaps into place and secures beam, is visible for easy checking and fast adjustment. Welded
braces provide maximum rigidity and stability. Epoxy finish. Step down beam design accommodates cross bars and
decking. Interchangeable with Teardrops styles of the following manufacturers: Interlake, Kingway, Unarco, Steel King,
USP, Wireway/Husky and Speed Rack. 3 1 /4” x 4 1 /4”. 12 ga. base plate anchors upright to floor and distributes weight evenly.
HOW TO SELECT PALLET RACK:
A. Height: Measure all verticals including
height of pallet, pallet-load, beam, add
an extra 4” to 8” clearance between top
of load and bottom of beam above. Top
beam should be a minimum of 6” less
than the lifting height of your forklift.
B. Depth: Measure depth of pallet. Pallet
should overhang frame by 3” front
and back. (eg.: 48” deep pallet, use 42”
deep frame.)
P
C. Width: Measure width of pallet, add a
minimum of 3” clearance pallet to frame
and 4” between pallets to determine
correct beam length. Each pair of beams
must support weight of pallets per level.
P P D. Frame Capacity: Add total weight of all
pallets for each bay (exclude pallets on
floor.) This is your desired frame capacity.
E. A common frame should be used
4" between each section.
UPRIGHT FRAME BEAMS (ORANGE)
1” (GREEN) One pair required per level.
Frame Clear Cap. Beam
1 5 /8” H” x D” Model Span” Lbs./Pr. Ht.” Model
5
3” x 1 5 /8” COLUMN 23,400 LB. CAP. 48 6590 3 /16 SC245970
5
96 x 48 SC796346 96 3230 3 /16 SC597001
1
96 x 36 SC796344 96 5030 4 /32 SC245972
1
96 x 42 SC796345 96 7160 5 /8 SC245973
1
120 x 42 SC796347 108 6420 5 /8 SC245975
BEAM Ht.”
1
120 x 48 SC796348 120 5630 5 /8 SC245976
144 x 36 SC796349 144 5970 6 SC597007
STARTER 144 x 42 SC796350
144 x 48
SC796351
UNIT
Includes 2 ADD-ON UNIT Includes FLOOR ANCHOR 3” X 3” COLUMN 38,400 LB. CAP. CROSS BAR
upright frames 1 upright frame and 2 BOLTS 1 /2” x 3 3 /4” 192 x 42 SC796352
and 2 pairs of pairs of shelf beams. SC796365
shelf beams. UPRIGHT FRAME CAPACITIES (in lbs.)
Meets 2008 RMI and 2007 AISI
Beam Cap. STARTER ADD-ON Beam Cap. STARTER ADD-ON specifications. Shelf spacing is Supports decking
W” x D” Ht.” Pair Model Model W” x D” Ht.” Pair Model Model measured from the floor to the top of and undersized pallets.
8’ HIGH 10’ HIGH the first beam or the maximum shelf Frame Cap.
48 x 36 3 5 /16 6590 SC796560 SC796561 48 x 42 3 5 /16 6590 SC796590 SC796591 spacing, whichever is greater. Depth” lbs. Model
96 x 36 4 1 /32 5030 SC796562 SC796563 96 x 42 4 1 /32 5030 SC796592 SC796593
96 x 36 5 1 /8 7160 SC796564 SC796565 96 x 42 5 1 /8 7160 SC796594 SC796595 Maximum Column Column 36 1350 SC796356
108 x 36 5 1 /8 6420 SC796566 SC796567 108 x 42 5 1 /8 6420 SC796596 SC796597 Shelf Size” Size” 42 1130 SC796357
5
120 x 36 5 1 /8 5630 SC796568 SC796569 120 x 42 5 1 /8 5630 SC796598 SC796599 Spacing” 3” x 1 /8” 3” x 3” 48 970 SC796358
48 x 42 3 5 /16 6590 SC796570 SC796571 48 x 48 3 5 /16 6590 SC796600 SC796601 36 23,400 38,400
96 x 42 4 1 /32 5030 SC796572 SC796573 96 x 48 4 1 /32 5030 SC796602 SC796603 42 21,900 34,600 STEEL WIRE MESH DECKING
96 x 42 5 1 /8 7160 SC796574 SC796575 96 x 48 5 1 /8 7160 SC796604 SC796605 48 19,300 30,600 Gray Enamel finish.
108 x 42 5 1 /8 6420 SC796576 SC796577 108 x 48 5 1 /8 6420 SC796606 SC796607 54 16,700 26,400
120 x 42 5 1 /8 5630 SC796578 SC796579 120 x 48 5 1 /8 5630 SC796608 SC796609 60 15,000 23,100
48 x 48 3 5 /16 6590 SC796580 SC796581 12’ HIGH 66 13,400 20,900
96 x 48 4 1 /32 5030 SC796582 SC796583 48 x 42 3 5 /16 6590 SC796610 SC796611 72 11,700 18,700
96 x 48 5 1 /8 7160 SC796584 SC796585 96 x 42 4 1 /32 5030 SC796612 SC796613 78 10,300 16,500
108 x 48 5 1 /8 6420 SC796586 SC796587 96 x 42 5 1 /8 7160 SC796614 SC796615 84 9,100 14,700
120 x 48 5 1 /8 5630 SC796588 SC796589 108 x 42 5 1 /8 6420 SC796616 SC796617 90 8,000 13,100
120 x 42 5 1 /8 5630 SC796618 SC796619 96 7,100 11,800
RIGID ROW SPACER
SHIMS FOR FRAMES RIGID WALL
Model L’’ x W ’’ BRACKET W’ D’’ Cap. Model
SC796363 3 x 3 1 /8
SC796364 3 x 4 1 /2 46 36 3200 SC613261
52 36 3250 SC613262
For uniform spacing between racks 58 36 3300 SC613263
and pallets. 4”H. WRAP AROUND Increases stability by connecting 46 42 2700 SC613264

Depth” Model FRAME GUARD rack to wall. 4’’H. 52 42 2700 SC613265
2750
42
SC613266
H’’
58
Model
6 SC796353 Model L” 46 48 2550 SC613267
8 SC796354 SC798617 12 SC796359 6 52 48 2600 SC613268
SC798618 18
12 SC796355 SC796360 12
58 48 2650 SC613269
40
