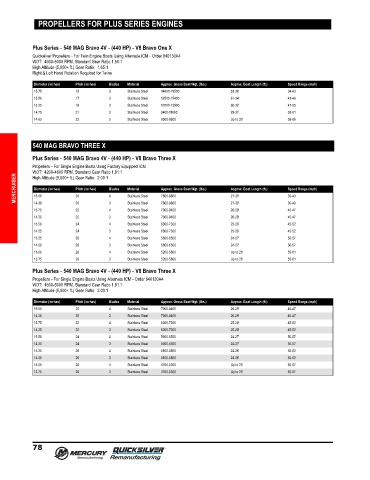

Page 95 - Repower Reference Guide (2020) 8M0149179

PROPELLERS FOR PLUS SERIES ENGINES

Plus Series ‑ 540 MAG Bravo 4V ‑ (440 HP) ‑ V8 Bravo One X
Quicksilver Propellers ‑ For Twin Engine Boats Using Alternate ICM ‑ Order 840130A4
WOT: 4600‑5000 RPM, Standard Gear Ratio 1.50:1
High Altitude (5,000+ ft.) Gear Ratio: 1.65:1
Right & Left Hand Rotation Required for Twins

Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
15.75 15 3 Stainless Steel 14800-19500 33-36' 34-43
15.50 17 3 Stainless Steel 12500-15400 31-34' 41-49
15.25 19 3 Stainless Steel 10700-12900 30-32' 47-55
14.75 21 3 Stainless Steel 9400-11000 29-31' 53-61
14.63 23 3 Stainless Steel 8300-9600 Up to 30' 59-66

540 MAG BRAVO THREE X

Plus Series ‑ 540 MAG Bravo 4V ‑ (440 HP) ‑ V8 Bravo Three X
Propellers ‑ For Single Engine Boats Using Factory Equipped ICM
WOT: 4200‑4600 RPM, Standard Gear Ratio 1.81:1
MERCRUISER Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
High Altitude (5,000+ ft.) Gear Ratio: 2.00:1

Stainless Steel
4
20
7800-9800
16.00
35-43
27-30'
14.38
26-29'
40-47
22
15.75 20 3 4 Stainless Steel 7800-9800 27-30' 35-43
7000-8400
Stainless Steel
14.25 22 3 Stainless Steel 7000-8400 26-29' 40-47
15.50 24 4 Stainless Steel 6300-7300 25-28' 45-52
14.25 24 3 Stainless Steel 6300-7300 25-28' 45-52
15.25 26 4 Stainless Steel 5600-6500 24-27' 50-57
14.00 26 3 Stainless Steel 5600-6500 24-27' 50-57
15.00 28 4 Stainless Steel 5200-5800 Up to 26' 55-61
13.75 28 3 Stainless Steel 5200-5800 Up to 26' 55-61
Plus Series ‑ 540 MAG Bravo 4V ‑ (440 HP) ‑ V8 Bravo Three X
Propellers ‑ For Single Engine Boats Using Alternate ICM ‑ Order 840130A4
WOT: 4600‑5000 RPM, Standard Gear Ratio 1.81:1
High Altitude (5,000+ ft.) Gear Ratio: 2.00:1
Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
16.00 20 4 Stainless Steel 7000-8400 26-29' 40-47
14.38 20 3 Stainless Steel 7000-8400 26-29' 40-47
15.75 22 4 Stainless Steel 6300-7300 25-28' 45-52
14.25 22 3 Stainless Steel 6300-7300 25-28' 45-52
15.50 24 4 Stainless Steel 5600-6500 24-27' 50-57
14.25 24 3 Stainless Steel 5600-6500 24-27' 50-57
15.25 26 4 Stainless Steel 5100-5800 24-26' 55-62
14.00 26 3 Stainless Steel 5100-5800 24-26' 55-62
15.00 28 4 Stainless Steel 4700-5300 Up to 25' 60-67
13.75 28 3 Stainless Steel 4700-5300 Up to 25' 60-67

78
