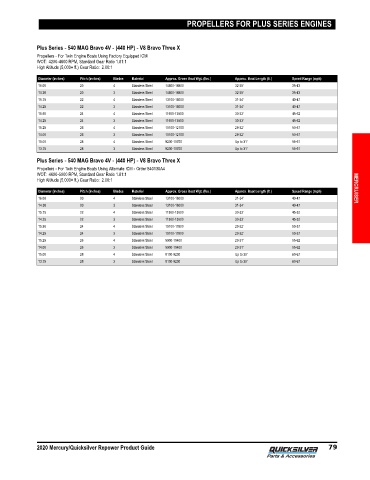

Page 96 - Repower Reference Guide (2020) 8M0149179
P. 96
PROPELLERS FOR PLUS SERIES ENGINES
Plus Series ‑ 540 MAG Bravo 4V ‑ (440 HP) ‑ V8 Bravo Three X
Propellers ‑ For Twin Engine Boats Using Factory Equipped ICM
WOT: 4200‑4600 RPM, Standard Gear Ratio 1.81:1
High Altitude (5,000+ ft.) Gear Ratio: 2.00:1
Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
16.00 20 4 Stainless Steel 14600-18800 32-35' 35-43
14.38 20 3 Stainless Steel 14600-18800 32-35' 35-43
15.75 22 4 Stainless Steel 13100-16000 31-34' 40-47
14.25 22 3 Stainless Steel 13100-16000 31-34' 40-47
15.50 24 4 Stainless Steel 11500-13500 30-33' 45-52
14.25 24 3 Stainless Steel 11500-13500 30-33' 45-52
15.25 26 4 Stainless Steel 10100-12100 29-32' 50-57
14.00 26 3 Stainless Steel 10100-12100 29-32' 50-57
15.00 28 4 Stainless Steel 9200-10700 Up to 31' 55-61
13.75 28 3 Stainless Steel 9200-10700 Up to 31' 55-61
Plus Series ‑ 540 MAG Bravo 4V ‑ (440 HP) ‑ V8 Bravo Three X
Propellers ‑ For Twin Engine Boats Using Alternate ICM ‑ Order 840130A4
WOT: 4600‑5000 RPM, Standard Gear Ratio 1.81:1
High Altitude (5,000+ ft.) Gear Ratio: 2.00:1
Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph) MERCRUISER
16.00 20 4 Stainless Steel 13100-16000 31-34' 40-47
14.38 20 3 Stainless Steel 13100-16000 31-34' 40-47
15.75 22 4 Stainless Steel 11500-13500 30-33' 45-52
14.25 22 3 Stainless Steel 11500-13500 30-33' 45-52
15.50 24 4 Stainless Steel 10100-11800 29-32' 50-57
14.25 24 3 Stainless Steel 10100-11800 29-32' 50-57
15.25 26 4 Stainless Steel 5900-10400 29-31' 55-62
14.00 26 3 Stainless Steel 5900-10400 29-31' 55-62
15.00 28 4 Stainless Steel 8100-9200 Up to 30' 60-67
13.75 28 3 Stainless Steel 8100-9200 Up to 30' 60-67
2020 Mercury/Quicksilver Repower Product Guide 79
