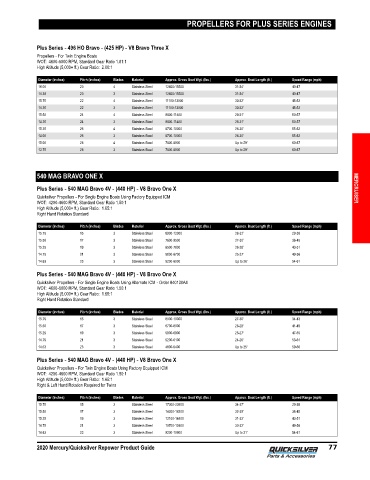

Page 94 - Repower Reference Guide (2020) 8M0149179

PROPELLERS FOR PLUS SERIES ENGINES

Plus Series ‑ 496 HO Bravo ‑ (425 HP) ‑ V8 Bravo Three X
Propellers ‑ For Twin Engine Boats
WOT: 4600‑5000 RPM, Standard Gear Ratio 1.81:1
High Altitude (5,000+ ft.) Gear Ratio: 2.00:1

Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
16.00 20 4 Stainless Steel 12600-15500 31-34' 40-47
14.38 20 3 Stainless Steel 12600-15500 31-34' 40-47
15.75 22 4 Stainless Steel 11100-13000 30-32' 45-52
14.25 22 3 Stainless Steel 11100-13000 30-32' 45-52
15.50 24 4 Stainless Steel 9800-11400 29-31' 50-57
14.25 24 3 Stainless Steel 9800-11400 29-31' 50-57
15.25 26 4 Stainless Steel 8700-10000 28-30' 55-62
14.00 26 3 Stainless Steel 8700-10000 28-30' 55-62
15.00 28 4 Stainless Steel 7800-8900 Up to 29' 60-67
13.75 28 3 Stainless Steel 7800-8900 Up to 29' 60-67

540 MAG BRAVO ONE X
Plus Series ‑ 540 MAG Bravo 4V ‑ (440 HP) ‑ V8 Bravo One X MERCRUISER
Quicksilver Propellers ‑ For Single Engine Boats Using Factory Equipped ICM
WOT: 4200‑4600 RPM, Standard Gear Ratio 1.50:1
High Altitude (5,000+ ft.) Gear Ratio: 1.65:1
Right Hand Rotation Standard
Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
15.75 15 3 Stainless Steel 8900-12000 28-32' 29-38
15.50 17 3 Stainless Steel 7600-9500 27-30' 36-45
15.25 19 3 Stainless Steel 6500-7800 26-28' 43-51
14.75 21 3 Stainless Steel 5800-6700 25-27' 49-56
14.63 23 3 Stainless Steel 5200-6000 Up to 26' 54-61
Plus Series ‑ 540 MAG Bravo 4V ‑ (440 HP) ‑ V8 Bravo One X
Quicksilver Propellers ‑ For Single Engine Boats Using Alternate ICM ‑ Order 840130A4
WOT: 4600‑5000 RPM, Standard Gear Ratio 1.50:1
High Altitude (5,000+ ft.) Gear Ratio: 1.65:1
Right Hand Rotation Standard

Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
15.75 15 3 Stainless Steel 8000-10000 27-30' 34-43
15.50 17 3 Stainless Steel 6700-8000 26-28' 41-49
15.25 19 3 Stainless Steel 5900-6900 25-27' 47-55
14.75 21 3 Stainless Steel 5200-6100 24-26' 53-61
14.63 23 3 Stainless Steel 4800-5400 Up to 25' 59-66

Plus Series ‑ 540 MAG Bravo 4V ‑ (440 HP) ‑ V8 Bravo One X
Quicksilver Propellers ‑ For Twin Engine Boats Using Factory Equipped ICM
WOT: 4200‑4600 RPM, Standard Gear Ratio 1.50:1
High Altitude (5,000+ ft.) Gear Ratio: 1.65:1
Right & Left Hand Rotation Required for Twins

Diameter (inches) Pitch (inches) Blades Material Approx. Gross Boat Wgt. (lbs.) Approx. Boat Length (ft.) Speed Range (mph)
15.75 15 3 Stainless Steel 17300-23600 34-37' 29-38
15.50 17 3 Stainless Steel 14200-18200 32-35' 36-45
15.25 19 3 Stainless Steel 12100-14600 31-33' 43-51
14.75 21 3 Stainless Steel 10700-12400 30-32' 49-56
14.63 23 3 Stainless Steel 9200-10900 Up to 31' 54-61

2020 Mercury/Quicksilver Repower Product Guide 77
