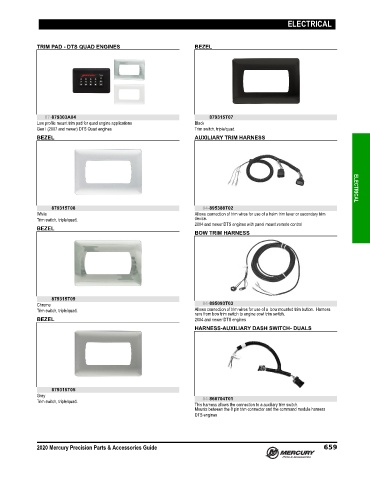

Page 668 - Latin America Accessories Guide (2020) - 8M0163252

ELECTRICAL

TRIM PAD - DTS QUAD ENGINES BEZEL

87-879303A04 879315T07
Low profile mount trim pad for quad engine applications Black
Gen I (2007 and newer) DTS Quad engines Trim switch, triple/quad.
BEZEL AUXILIARY TRIM HARNESS

879315T08 84-895388T02 ELECTRICAL
White Allows connection of trim wires for use of a helm trim lever or secondary trim
Trim switch, triple/quad. device.
2004 and newer DTS engines with panel mount remote control
BEZEL
BOW TRIM HARNESS

879315T09
Chrome 84-895093T03
Trim switch, triple/quad. Allows connection of trim wires for use of a bow mounted trim button. Harness
runs from bow trim switch to engine cowl trim switch.
BEZEL 2004 and newer DTS engines
HARNESS-AUXILIARY DASH SWITCH- DUALS

879315T05
Grey 84-866704T01
Trim switch, triple/quad.
This harness allows the connection to a auxiliary trim switch.
Mounts between the 8 pin trim connector and the command module harness
DTS engines
