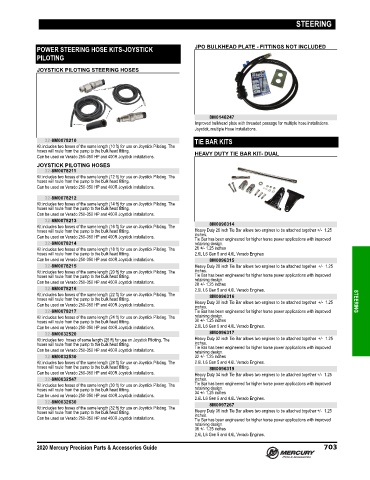

Page 712 - Latin America Accessories Guide (2020) - 8M0163252

STEERING

POWER STEERING HOSE KITS-JOYSTICK JPO BULKHEAD PLATE - FITTINGS NOT INCLUDED
PILOTING

JOYSTICK PILOTING STEERING HOSES

8M0146247
Improved bulkhead plate with threaded passage for multiple hose installations.
Joystick, multiple Hose Installations.
32-8M0078210 TIE BAR KITS
Kit includes two hoses of the same length (10 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting. HEAVY DUTY TIE BAR KIT- DUAL
Can be used on Verado 250‑350 HP and 400R Joystick installations.
JOYSTICK PILOTING HOSES
32-8M0078211
Kit includes two hoses of the same length (12 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0078212
Kit includes two hoses of the same length (14 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0078213
Kit includes two hoses of the same length (16 ft) for use on Joystick Piloting. The 8M0096314
hoses will route from the pump to the bulk head fitting. Heavy Duty 26 inch Tie Bar allows two engines to be attached together +/‑ 1.25
Can be used on Verado 250‑350 HP and 400R Joystick installations. inches.
Tie Bar has been engineered for higher horse power applications with improved
32-8M0078214 retaining design.
Kit includes two hoses of the same length (18 ft) for use on Joystick Piloting. The 26 +/‑ 1.25 inches
hoses will route from the pump to the bulk head fitting. 2.6L L6 Gen 5 and 4.6L Verado Engines
Can be used on Verado 250‑350 HP and 400R Joystick installations. 8M0096315
32-8M0078215 Heavy Duty 28 inch Tie Bar allows two engines to be attached together +/‑ 1.25
Kit includes two hoses of the same length (20 ft) for use on Joystick Piloting. The inches.
hoses will route from the pump to the bulk head fitting. Tie Bar has been engineered for higher horse power applications with improved
Can be used on Verado 250‑350 HP and 400R Joystick installations. retaining design.
28 +/‑ 1.25 inches
32-8M0078216 2.6L L6 Gen 5 and 4.6L Verado Engines.
Kit includes two hoses of the same length (22 ft) for use on Joystick Piloting. The 8M0096316
hoses will route from the pump to the bulk head fitting. STEERING
Can be used on Verado 250‑350 HP and 400R Joystick installations. Heavy Duty 30 inch Tie Bar allows two engines to be attached together +/‑ 1.25
inches.
32-8M0078217 Tie Bar has been engineered for higher horse power applications with improved
Kit includes two hoses of the same length (24 ft) for use on Joystick Piloting. The retaining design.
hoses will route from the pump to the bulk head fitting. 30 +/‑ 1.25 inches
Can be used on Verado 250‑350 HP and 400R Joystick installations. 2.6L L6 Gen 5 and 4.6L Verado Engines.
32-8M0032520 8M0096317
Kit includes two hoses of same length (26 ft) for use on Joystick Piloting. The Heavy Duty 32 inch Tie Bar allows two engines to be attached together +/‑ 1.25
hoses will route from the pump to the bulk head fitting. inches.
Can be used on Verado 250‑350 HP and 400R Joystick installations. Tie Bar has been engineered for higher horse power applications with improved
retaining design.
32-8M0032530 32 +/‑ 1.25 inches
Kit includes two hoses of the same length (28 ft) for use on Joystick Piloting. The 2.6L L6 Gen 5 and 4.6L Verado Engines.
hoses will route from the pump to the bulk head fitting. 8M0096319
Can be used on Verado 250‑350 HP and 400R Joystick installations. Heavy Duty 34 inch Tie Bar allows two engines to be attached together +/‑ 1.25
32-8M0032547 inches.
Kit includes two hoses of the same length (30 ft) for use on Joystick Piloting. The Tie Bar has been engineered for higher horse power applications with improved
hoses will route from the pump to the bulk head fitting. retaining design.
34 +/‑ 1.25 inches
Can be used on Verado 250‑350 HP and 400R Joystick installations. 2.6L L6 Gen 5 and 4.6L Verado Engines.
32-8M0032630
Kit includes two hoses of the same length (32 ft) for use on Joystick Piloting. The 8M0097267
hoses will route from the pump to the bulk head fitting. Heavy Duty 36 inch Tie Bar allows two engines to be attached together +/‑ 1.25
Can be used on Verado 250‑350 HP and 400R Joystick installations. inches.
Tie Bar has been engineered for higher horse power applications with improved
retaining design.
36 +/‑ 1.25 inches
2.6L L6 Gen 5 and 4.6L Verado Engines.
2020 Mercury Precision Parts & Accessories Guide 703
