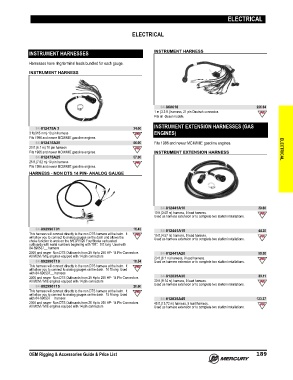

Page 202 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ELECTRICAL

ELECTRICAL

INSTRUMENT HARNESSES INSTRUMENT HARNESS

Harnesses have ring terminal leads bundled for each gauge.
INSTRUMENT HARNESS

84-860618 226.64
1 m (3.3 ft.) harness, 21 pin Deutsch connector.
Fits all diesel models.
INSTRUMENT EXTENSION HARNESSES (GAS
84-812475A 3 34.00
3 ft.(915 mm) 10 pin harness ENGINES)
Fits 1986 and newer MCM/MIE gasoline engines.
84-812475A20 56.00 Fits 1986 and newer MCM/MIE gasoline engines.
20 ft.(6.1 m) 10 pin harness ELECTRICAL
Fits 1986 and newer MCM/MIE gasoline engines. INSTRUMENT EXTENSION HARNESS
84-812475A25 57.00
25 ft.(7.62 m) 10 pin harness
Fits 1986 and newer MCM/MIE gasoline engines.
HARNESS - NON DTS 14 PIN- ANALOG GAUGE

84-812441A10 39.80
10 ft.(3.05 m) harness, 9 lead harness.
Used as harness extension or to complete two station installations.

84-892990T01 16.43 84-812441A15 44.25
This harness will connect directly to the non DTS harness at the helm. It 15 ft.(4.57 m) harness, 9 lead harness.
will allow you to connect to analog gauges on the dash and allows the Used as harness extension or to complete two station installations.
choke function to work on the 8/9.9/15/20 FourStroke carbureted
outboards with serial numbers beginning with "0R". 5 ft long Used with
84‑896537__ harness
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors 84-812441A20 50.50
All MCM / MIE engines equiped with 14 pin connectors 20 ft.(6.1 m) harness, 9 lead harness.
84-892990T10 18.54 Used as harness extension or to complete two station installations.
This harness will connect directly to the non DTS harness at the helm. It
will allow you to connect to analog gauges on the dash. 10 ft long Used
with 84‑896537__ harness
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors 84-812835A30 89.11
All MCM / MIE engines equiped with 14 pin connectors 30 ft.(9.14 m) harness, 9 lead harness.
84-892990T15 20.60 Used as harness extension or to complete two station installations.
This harness will connect directly to the non DTS harness at the helm. It
will allow you to connect to analog gauges on the dash. 15 ft long Used
with 84‑896537__ harness 84-812835A45 123.37
2006 and newer Non DTS Outboards from 25 Hp to 250 HP‑ 14 Pin Connectors 45 ft.(13.72 m) harness, 9 lead harness.
All MCM / MIE engines equiped with 14 pin connectors Used as harness extension or to complete two station installations.
