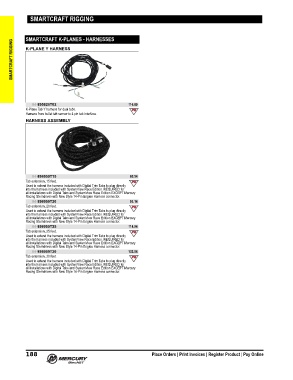

Page 201 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)
P. 201
SMARTCRAFT RIGGING
SMARTCRAFT K-PLANES - HARNESSES
SMARTCRAFT RIGGING
K-PLANE Y HARNESS
84-895820T02 116.89
K‑Plane Tab Y harness for dual tabs.
Harness from bullet tab sensor to 4 pin tab interface.
HARNESS ASSEMBLY
84-898059T15 85.54
Tab extension, 15 feet.
Used to extend the harness included with Digital Trim Tabs to plug directly
into the harness included with SystemView Race Edition. REQUIRED for
all installations with Digital Tabs and SystemView Race Edition EXCEPT Mercury
Racing Sterndrives with New Style 14‑Pin Engine Harness connector.
84-898059T20 93.14
Tab extension, 20 feet.
Used to extend the harness included with Digital Trim Tabs to plug directly
into the harness included with SystemView Race Edition. REQUIRED for
all installations with Digital Tabs and SystemView Race Edition EXCEPT Mercury
Racing Sterndrives with New Style 14‑Pin Engine Harness connector.
84-898059T25 114.96
Tab extension, 25 feet.
Used to extend the harness included with Digital Trim Tabs to plug directly
into the harness included with SystemView Race Edition. REQUIRED for
all installations with Digital Tabs and SystemView Race Edition EXCEPT Mercury
Racing Sterndrives with New Style 14‑Pin Engine Harness connector.
84-898059T30 132.58
Tab extension, 30 feet.
Used to extend the harness included with Digital Trim Tabs to plug directly
into the harness included with SystemView Race Edition. REQUIRED for
all installations with Digital Tabs and SystemView Race Edition EXCEPT Mercury
Racing Sterndrives with New Style 14‑Pin Engine Harness connector.
