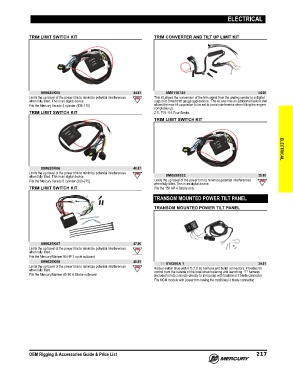

Page 230 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ELECTRICAL

TRIM LIMIT SWITCH KIT TRIM CONVERTER AND TILT UP LIMIT KIT

899625K05 44.81 8M0118725 54.06
Limits the up travel of the power trim to minimize potential interferences This kit allows the conversion of the trim signal from the analog sender to a digital
when fully tilted. This is an digital device. output for Smartcraft gauge applications. The kit also has an additional feature that
Fits the Mercury Verado 4 cylinder (135‑175) allows the max tilt up positon to be set to avoid interference when tilting the engine
completely up.
TRIM LIMIT SWITCH KIT 2.1L F75‑115 Four Stroke
TRIM LIMIT SWITCH KIT

899625K06 46.87 ELECTRICAL
Limits the up travel of the power trim to minimize potential interferences
when fully tilted. This is an digital device. 8M0059532 35.80
Fits the Mercury Verado 6 cylinder (200‑275) Limits the up travel of the power trim to minimize potential interferences
when fully tilted. This is an digital device.
TRIM LIMIT SWITCH KIT Fits the 150 HP 4 Stroke only
TRANSOM MOUNTED POWER TILT PANEL

TRANSOM MOUNTED POWER TILT PANEL

899625K07 47.90
Limits the up travel of the power trim to minimize potential interferences
when fully tilted.
Fits the Mercury/Mariner 90 HP 2 cycle outboard
899625K08 48.93 87-815200A 1 34.51
Limits the up travel of the power trim to minimize potential interferences
when fully tilted. Rocker switch style with 6 ft.(1.8 m) harness and bullet connectors. Provides tilt
control from the outside of the boat when trailering and launching. "T" harness
Fits the Mercury/Mariner 40‑60 4 Stroke outboard (included in kit) connects directly to trim pump with traditional 3 blade connector.
Fits MCM models with power trim having the traditional 3 blade connector.

OEM Rigging & Accessories Guide & Price List 217
