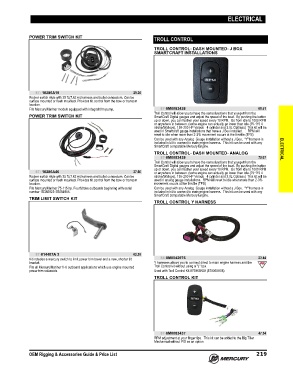

Page 232 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ELECTRICAL

POWER TRIM SWITCH KIT
TROLL CONTROL
TROLL CONTROL- DASH MOUNTED- J BOX
SMARTCRAFT INSTALLATIONS

87- 18286A19 29.36
Rocker switch style with 25 ft.(7.62 m) harness and bullet connectors. Can be
surface mounted or flush mounted. Provides tilt control from the bow or transom
location.
Fits Mercury/Mariner models equipped with integral trim pump. 87-8M0083438 68.51
Troll Control will allow you to have the same functions that you get from the
POWER TRIM SWITCH KIT SmartCraft Digital gauges and adjust the speed of the boat. By pushing the button
up or down, you can feather your speed every 10 RPM. Go from idle to 1000 RPM
or anywhere in between. (some engine can actually go lower than idle (75‑115 4
stroke(Walleye), 135‑200 HP Verado 4 cylinder and 3.0L Optimax) This kit will be
used in Smartcraft gauge installations that have a J Box installed. . RPM will
reset to idle when more than 2‑3% movement occurs at the throttle (TPS)
Can be used with any Analog Gauge installation without a J Box. "Y" harness is
included in kit to connect to main engine hanress. This kit can be used with any
SmartCraft compatable Mercury Engine. ELECTRICAL
TROLL CONTROL- DASH MOUNTED- ANALOG
87-8M0083439 79.07
Troll Control will allow you to have the same functions that you get from the
SmartCraft Digital gauges and adjust the speed of the boat. By pushing the button
up or down, you can feather your speed every 10 RPM. Go from idle to 1000 RPM
87- 18286A46 37.60 or anywhere in between. (some engine can actually go lower than idle (75‑115 4
Rocker switch style with 25 ft.(7.62 m) harness and bullet connectors. Can be stroke(Walleye), 135‑200 HP Verado 4 cylinder and 3.0L Optimax) This kit will be
surface mounted or flush mounted. Provides tilt control from the bow or transom used in analog gauge installations. RPM will reset to idle when more than 2‑3%
location. movement occurs at the throttle (TPS)
Fits Mercury/Mariner 75‑115 hp. FourStroke outboards beginning with serial Can be used with any Analog Gauge installation without a J Box. "Y" harness is
number 1B366823‑2B094955. included in kit to connect to main engine hanress. This kit can be used with any
SmartCraft compatable Mercury Engine.
TRIM LIMIT SWITCH KIT
TROLL CONTROL Y HARNESS

87-814407A 3 62.35
Kit includes a mercury switch to limit power trim travel and a new, shorter tilt 84-8M0042976 23.44
bracket. Y hareness allows you to connect direct to main engine harness and the
Fits all Mercury/Mariner V‑6 outboard applications which use engine mounted Troll Control kit without using a "J" box.
power trim solenoids. Used with Troll Control Kit 879365K08 (879365A08)
TROLL CONTROL KIT

87-8M0083437 47.34
RPM adjustment at your finger tips. This kit can be added to the Big Tiller
Mechanical without P/S as an option

OEM Rigging & Accessories Guide & Price List 219
