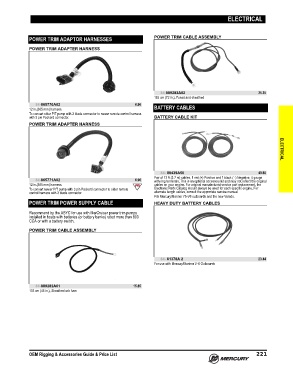

Page 234 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ELECTRICAL

POWER TRIM ADAPTOR HARNESSES POWER TRIM CABLE ASSEMBLY

POWER TRIM ADAPTER HARNESS

84-889282A02 35.35
183 cm (72 in.), Fused and sheathed
84-865770A02 6.96
12 in.(305 mm) harness. BATTERY CABLES
To convert older P/T pump with 3 blade connector to newer remote control harness
with 3 pin Packard connector. BATTERY CABLE KIT
POWER TRIM ADAPTER HARNESS

84- 88439A50 49.80 ELECTRICAL
Pair of 12 ft.(3.7 m) cables, 1 red (+) Positive and 1 black ( ‑) Negative, 4 gauge
84-865771A02 6.96 with ring terminals. This is an optional accessory kit and may not reflect the original
12 in.(305 mm) harness. cables on your engine. For original manufactured service part replacement, the
To convert newer P/T pump with 3 pin Packard connector to older remote Electronic Parts Catalog should always be used for each specific engine. For
control harness with 3 blade connector. alternate length cables, consult the approriate service manual.
Fits Mercury/Mariner 75‑V6 outboards and the new Verado.
POWER TRIM POWER SUPPLY CABLE HEAVY DUTY BATTERY CABLES

Recommend by the ABYC for use with MerCruiser power trim pumps
installed in boats with batteries (or battery banks) rated more than 800
CCA or with a battery switch.
POWER TRIM CABLE ASSEMBLY

84- 61378A 2 23.44
For use with Mercury/Mariner V‑6 Outboards

84-889282A01 15.85
102 cm (48 in.), Sheathed w/o fuse

OEM Rigging & Accessories Guide & Price List 221
