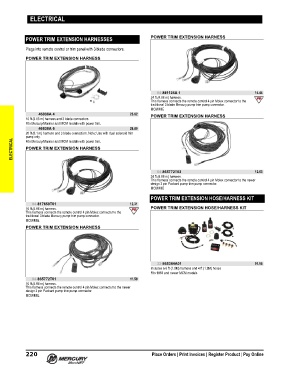

Page 233 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ELECTRICAL

POWER TRIM EXTENSION HARNESSES POWER TRIM EXTENSION HARNESS

Plugs into remote control or trim panel with 3 blade connectors.

POWER TRIM EXTENSION HARNESS

84-881125A 1 15.45
24 ft.(4.88 m) harness.
This harness connects the remote control 4 pin Molex connector to the
traditional 3 blade Mercury pump trim pump connector.
MCM/MIE
46838A 4 23.62 POWER TRIM EXTENSION HARNESS
10 ft.(3.05 m) harness and 3 blade connectors.
Fits Mercury/Mariner and MCM models with power trim.
46838A 6 28.80
20 ft.(6.1 m) harness and 3 blade connectors. Note: Use with dual solenoid trim
pump only.
ELECTRICAL POWER TRIM EXTENSION HARNESS
Fits Mercury/Mariner and MCM models with power trim.

84-865772T02 12.63
24 ft.(4.88 m) harness.
This harness connects the remote control 4 pin Molex connector to the newer
design 3 pin Packard pump trim pump connector.
MCM/MIE

POWER TRIM EXTENSION HOSE/HARNESS KIT
84-817659T01 12.31
16 ft.(4.88 m) harness. POWER TRIM EXTENSION HOSE/HARNESS KIT
This harness connects the remote control 4 pin Molex connector to the
traditional 3 blade Mercury pump trim pump connector.
MCM/MIE
POWER TRIM EXTENSION HARNESS

32-865384A01 91.95
Includes a 6 ft (1.8M) harness and 4 ft (1.2M) hoses
Fits 1983 and newer MCM models
84-865772T01 11.59
16 ft.(4.88 m) harness.
This harness connects the remote control 4 pin Molex connector to the newer
design 3 pin Packard pump trim pump connector.
MCM/MIE
