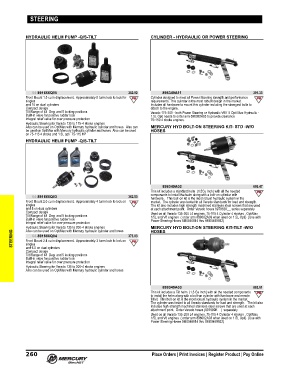

Page 273 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

STEERING

HYDRAULIC HELM PUMP -Q/S-TILT CYLINDER - HYDRAULIC OR POWER STEERING

64-891666Q05 352.02 898349A11 301.33
Front Mount 1.5 cu in displacement. Approximately 5 turns lock to lock for Cylinder designed to meet all Power Steering strength and performance
singles requirements. This cylinder is the most robust design in the market.
and 10 on dual cylinders Includes all hardware to mount this cylinder including the strongest bolts to
Compact design attach to the engine.
Tilt Range of 48 Deg and 5 locking positions Verado 175‑200 ‑ both Power Steering or Hydraulic V6/1.5 Opti Max Hydraulic ‑
Built‑in valve for positive rudder lock 1.5L Opti needs to order arm 898082A03 to provide clearance
Integral relief valve for over pressure protection 75‑150 4 stroke engines.
Hydraulic Steering for Verado 135 to 175‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses. Also can MERCURY HYD BOLT-ON STEERING KIT- STD -W/O
be used on OptiMax with Mercury hydraulic cylinder and hoses Also can be used HOSES
on 75‑115 4 stroke and 1.5L opti 75‑115 HP
HYDRAULIC HELM PUMP -Q/S-TILT

898349A02 609.47
This kit includes a standard helm (1.5Cu Inch) with all the needed
64-891666Q03 362.53 components to install the helm along with a bolt‑on cylinder with
hardware . This bolt‑on kit is the most robust hydraulic system in the
Front Mount 2.0 cu in displacement. Approximately 4 turns lock to lock on market. The cylinder was tested to all Verado standards for load and strength.
singles The kit also includes high strength machined stainless steel screws that are used
and 8 on dual cylinders at each attachment point. Order Verado hoses 897982K__ series separately
Compact design Used on all Verado 135‑200 L4 engines, 75‑115 4 Cylinder 4 strokes , OptiMax
Tilt Range of 48 Deg and 5 locking positions 1/5L and V6 engines ( order arm 898082A03 when used on 1.5L Opti) (Use with
Built‑in valve for positive rudder lock Power Steering Hoses 8M0046914 thru 8M00469932)
Integral relief valve for over pressure protection
Hydraulic Steering for Verado 135 to 200‑4 stroke engines MERCURY HYD BOLT-ON STEERING KIT-TILT -W/O
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses
STEERING Front Mount 2.4 cu in displacement. Approximately 3 turns lock to lock on 373.03
HOSES
64-891666Q04
singles
and 6.5 on dual cylinders
Compact design
Tilt Range of 48 Deg and 5 locking positions
Built‑in valve for positive rudder lock
Integral relief valve for over pressure protection
Hydraulic Steering for Verado 135 to 200‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses
898349A03 662.01
This kit includes a Tilt helm (1.5 Cu Inch) with all the needed components
to install the helm along with a bolt‑on cylinder with hardware and remote
fill kit. This bolt‑on kit is the most robust hydraulic system in the market.
The cylinder was tested to all Verado standards for load and strength. The kit also
includes high strength machined stainless steel screws that are used at each
attachment point. Order Verado hoses (897982K__) separately
Used on all Verado 135‑200 L4 engines, 75‑115 4 Cylinder 4 strokes , OptiMax
1/5L and V6 engines ( order arm 898082A03 when used on 1.5L Opti) (Use with
Power Steering Hoses 8M0046914 thru 8M00469932)
