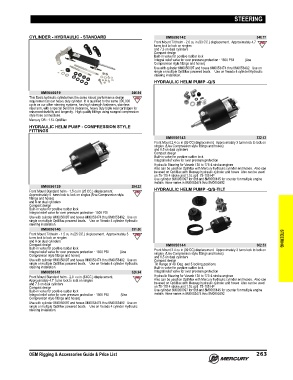

Page 276 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

STEERING

CYLINDER - HYDRAULIC - STANDARD 8M0056142 346.77
Front Mount Tilt helm ‑ 2.0 cu in (33 CC.) displacement. Approximately 4.7
turns lock to lock on singles
and 7.3 on dual cylinders
Compact design
Built‑in valve for positive rudder lock
Integral relief valve for over pressure protection ‑ 1500 PSI (Use
Compression style fittings and hoses)
Use with cylinder 8M0050097 and hoses 8M0053474 thru 8M0053492. Use on
single or multiple OptiMax powered boats. Use on Verado 4 cylinder Hydraulic
steering installation.
HYDRAULIC HELM PUMP -Q/S

8M0056619 246.94
This Basic hydraulic cylinder has the same robust performance design
requirement as our heavy duty cylinder. It is qualified to the same 300,000
cycle as our other steering systems, has high strength fasteners, stainless
steel arm, with a special bend for clearance, heavy duty triple seal cartridges for
enhanced duribilty and longevity. High quality fittings using swaged compression
style hose connections.
Mercury OB ‑ 1.5L OptiMax
HYDRAULIC HELM PUMP - COMPRESSION STYLE
FITTINGS
8M0056143 332.13
Front Mount 2.4 cu in (39 CC) displacement. Approximately 3 turns lock to lock on
singles (Use Compression style fittings and hoses)
and 6.5 on dual cylinders
Compact design
Built‑in valve for positive rudder lock
Integral relief valve for over pressure protection
Hydraulic Steering for Verado 135 to 175‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses. Also can
be used on OptiMax with Mercury hydraulic cylinder and hoses Also can be used
on 75‑115 4 stroke and 1.5L opti 75‑115 HP
Use cylinder 8M0050097 for Std and 8M0056145 for counter for multiple engine
installs. Hose series is 8M0053474 thru 8M0053492
8M0056139 294.23
Front Mount Standard helm ‑ 1.5 cu in (25 CC.) displacement. HYDRAULIC HELM PUMP -Q/S-TILT
Approximately 5 turns lock to lock on singles (Use Compression style
fittings and hoses)
and 8 on dual cylinders
Compact design
Built‑in valve for positive rudder lock
Integral relief valve for over pressure protection‑ 1500 PSI
Use with cylinder 8M0050097 and hoses 8M0053474 thru 8M0053492. Use on
single or multiple OptiMax powered boats. Use on Verado 4 cylinder Hydraulic
steering installation.
8M0056140 331.00
Front Mount Tilt helm ‑ 1.5 cu in (25 CC.) displacement. Approximately 5
turns lock to lock on singles STEERING
and 8 on dual cylinders
Compact design 8M0056144 362.53
Built‑in valve for positive rudder lock Front Mount 2.4 cu in (39 CC) displacement. Approximately 3 turns lock to lock on
Integral relief valve for over pressure protection ‑ 1500 PSI (Use singles (Use Compression style fittings and hoses)
Compression style fittings and hoses) and 6.5 on dual cylinders
Use with cylinder 8M0050097 and hoses 8M0053474 thru 8M0053492. Use on Compact design
single or multiple OptiMax powered boats. Use on Verado 4 cylinder Hydraulic Tilt Range of 48 Deg and 5 locking positions
steering installation. Built‑in valve for positive rudder lock
8M0056141 326.94 Integral relief valve for over pressure protection
Front Mount Standard helm ‑ 2.0 cu in (33CC.) displacement. Hydraulic Steering for Verado 135 to 175‑4 stroke engines
Approximately 4.7 turns lock to lock on singles Also can be used on OptiMax with Mercury hydraulic cylinder and hoses. Also can
and 7.3 on dual cylinders be used on OptiMax with Mercury hydraulic cylinder and hoses Also can be used
Compact design on 75‑115 4 stroke and 1.5L opti 75‑115 HP
Built‑in valve for positive rudder lock Use cylinder 8M0050097 for Std and 8M0056145 for counter for multiple engine
Integral relief valve for over pressure protection ‑ 1500 PSI (Use installs. Hose series is 8M0053474 thru 8M0053492
Compression style fittings and hoses)
Use with cylinder 8M0050097 and hoses 8M0053474 thru 8M0053492. Use on
single or multiple OptiMax powered boats. Use on Verado 4 cylinder Hydraulic
steering installation.

OEM Rigging & Accessories Guide & Price List 263
