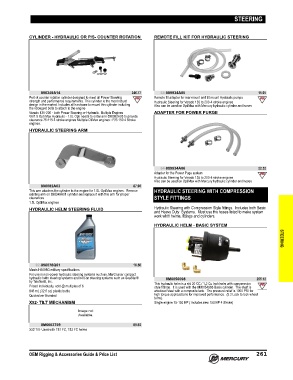

Page 274 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

STEERING

CYLINDER - HYDRAULIC OR P/S- COUNTER ROTATION REMOTE FILL KIT FOR HYDRAULIC STEERING

898349A14 346.77 64-889934A05 15.05
Port ot counter rotation cylinder designed to meet all Power Steering Remote fill adapter for rear mount and tilt mount Hydraulic pumps
strength and performance requirements. This cylinder is the most robust Hydraulic Steering for Verado 135 to 200‑4 stroke engines
design in the market. Includes all hardware to mount this cylinder including Also can be used on OptiMax with Mercury hydraulic cylinder and hoses
the strongest bolts to attach to the engine
Verado 135‑200 ‑ both Power Steering or Hydraulic. Multiple Engines ADAPTER FOR POWER PURGE
V6/1.5 Opti Max Hydraulic ‑ 1.5L Opti needs to order arm 898082A03 to provide
clearance 75‑115 4 stroke engines Multiple OtiMax engines ‑ P/S 150 4 Stroke
engines.
HYDRAULIC STEERING ARM

64-889934A06 22.32
Adapter for the Power Puge system
Hydraulic Steering for Verado 135 to 200‑4 stroke engines
Also can be used on OptiMax with Mercury hydraulic cylinder and hoses
898082A03 87.96
This arm attaches the cylinder to the engine for 1.5L OptiMax engines. Remove HYDRAULIC STEERING WITH COMPRESSION
existing arm on 898349A01 cylinder and replace it with this arm for proper
clearances STYLE FITTINGS
1.5L OptiMax engines
HYDRAULIC HELM STEERING FLUID Hydraulic Steering with Compression Style fittings. Includes both Basic
and Heavy Duty Systems. Must use the hoses listed to make system
work whth helms, fittings and cylinders.
HYDRAULIC HELM - BASIC SYSTEM STEERING

92-858078Q01 10.58
Meets H5606G military specifications
For use in non‑power hydraulic steering systems such as, MerCruiser compact
hydraulic helm steering systems and bolt‑on steering systems such as SeaStar® 8M0050098 255.12
by Teleflex®, Inc. This hydraulic helm is a std 20 CC / 1.2 Cu Inch helm with compression
Priced individually, sold @ multiples of 6 style fittings. It is used with the 8M0054993 Basic cylinder. The shaft is
946 mL (32 fl oz) plastic bottle anodized steel with a composite tank. The pressure relief is 1000 PSI for
Quicksilver Branded high torque applicactions for improved performance. (5.2 Lock to lock wheel
turns).
X52- TILT MECHANISM Single engine 75‑150 HP ( includes new 150 HP 4 Stroke)

8M6003709 89.92
X52 Tilt‑ Used with T81 FC, T83 FC helms
