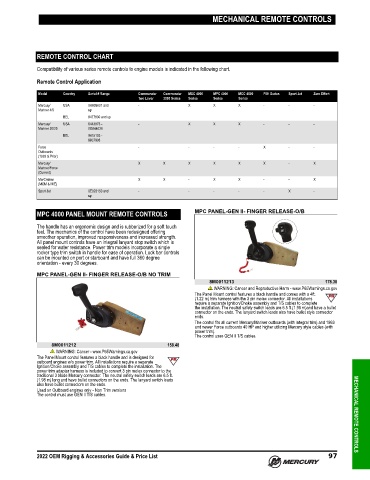

Page 110 - Rigging and Accessories Guide (2022) - 8M0187689

MECHANICAL REMOTE CONTROLS

REMOTE CONTROL CHART

Compatibility of various series remote controls to engine models is indicated in the following chart.
Remote Control Application

Model Country Serial # Range Commander Commander MSC 4000 MPC 4000 MCC 4500 F5H Series Sport Jet Zero Effort
Two Lever 3000 Series Series Series Series
Mercury/ USA 0A809601 and - X X X - - -
Mariner 4/5 up
BEL 9477830 and up
Mercury/ USA 6443973 - - X X X - - -
Mariner 20/25 0G044026
BEL 9415103 -
9807908
Force - - - - X - -
Outboards
(1992 & Prior)
Mercury/ X X X X X X - X
Mariner/Force
(Current)
MerCruiser X X - X X - - X
(MCM & MIE)
Sport Jet 0E023150 and - - - - - X -
up

MPC 4000 PANEL MOUNT REMOTE CONTROLS MPC PANEL-GEN II- FINGER RELEASE-O/B

The handle has an ergonomic design and is rubberized for a soft touch
feel. The mechanics of the control have been redesigned offering
smoother operation, improved responsiveness and increased strength.
All panel mount controls have an integral lanyard stop switch which is
sealed for water resistance. Power trim models incorporate a single
rocker type trim switch in handle for ease of operation. Lock bar controls
can be mounted on port or starboard and have full 360 degree
orientation ‑ every 30 degrees.
MPC PANEL-GEN II- FINGER RELEASE-O/B NO TRIM
8M0011213 178.30
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The Panel Mount control features a black handle and comes with a 4ft.
(1.22 m) trim harness with the 3 pin molex connector. All installations
require a separate Ignition/Choke assembly and T/S cables to complete
the installation. The neutral safety switch leads are 6.5 ft.(1.98 m)and have a bullet
connector on the ends. The lanyard switch leads also have bullet style connector
ends.
The control fits all current Mercury/Mariner outboards (with integral trim) and 1993
and newer Force outboards 40 HP and higher utilizing Mercury style cables (with
power trim).
The control uses GEN II T/S cables.
8M0011212 158.48
WARNING: Cancer - www.P65Warnings.ca.gov
The Panel Mount control features a black handle and is designed for
outboard engines w/o power trim. All installations require a separate
Ignition/Choke assembly and T/S cables to complete the installation. The
power trim adapter harness is included to convert 3 pin molex connector to the
traditional 3 blade Mercury connector. The neutral safety switch leads are 6.5 ft.
(1.98 m) long and have bullet connectors on the ends. The lanyard switch leads
also have bullet connectors on the ends.
Used on Outboard engines only ‑ Non Trim versions
The control must use GEN II T/S cables. MECHANICAL REMOTE CONTROLS
