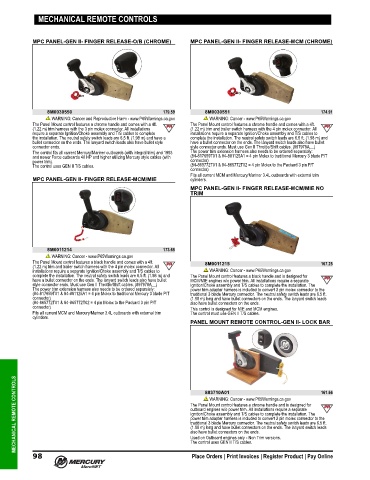

Page 111 - Rigging and Accessories Guide (2022) - 8M0187689

MECHANICAL REMOTE CONTROLS

MPC PANEL-GEN II- FINGER RELEASE-O/B (CHROME) MPC PANEL-GEN II- FINGER RELEASE-MCM (CHROME)

8M0030550 179.59 8M0030551 174.91
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer - www.P65Warnings.ca.gov
The Panel Mount control features a chrome handle and comes with a 4ft. The Panel Mount control features a chrome handle and comes with a 4ft.
(1.22 m) trim harness with the 3 pin molex connector. All installations (1.22 m) trim and trailer switch harness with the 4 pin molex connector. All
require a separate Ignition/Choke assembly and T/S cables to complete installations require a separate Ignition/Choke assembly and T/S cables to
the installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and have a complete the installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and
bullet connector on the ends. The lanyard switch leads also have bullet style have a bullet connector on the ends. The lanyard switch leads also have bullet
connector ends. style connector ends. Must use Gen II Throttle/Shift cables. (897978A__)
The control fits all current Mercury/Mariner outboards (with integral trim) and 1993 The power trim extension harness also needs to be ordered separately:
and newer Force outboards 40 HP and higher utilizing Mercury style cables (with (84‑817659T01 & 84‑881125A1 = 4 pin Molex to traditional Mercury 3 blade P/T
power trim). connector)
The control uses GEN II T/S cables. (84‑865772T01 & 84‑865772T02 = 4 pin Molex to the Packard 3 pin P/T
connector)
Fits all current MCM and Mercury/Mariner 3.4L outboards with external trim
MPC PANEL-GEN II- FINGER RELEASE-MCM/MIE cylinders.
MPC PANEL-GEN II- FINGER RELEASE-MCM/MIE NO
TRIM

8M0011214 173.65
WARNING: Cancer - www.P65Warnings.ca.gov
The Panel Mount control features a black handle and comes with a 4ft. 8M0011215 167.25
(1.22 m) trim and trailer switch harness with the 4 pin molex connector. All
installations require a separate Ignition/Choke assembly and T/S cables to WARNING: Cancer - www.P65Warnings.ca.gov
complete the installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and The Panel Mount control features a black handle and is designed for
have a bullet connector on the ends. The lanyard switch leads also have bullet MCM/MIE engines w/o power trim. All installations require a separate
style connector ends. Must use Gen II Throttle/Shift cables. (897978A__) Ignition/Choke assembly and T/S cables to complete the installation. The
The power trim extension harness also needs to be ordered separately: power trim adapter harness is included to convert 3 pin molex connector to the
(84‑817659T01 & 84‑881125A1 = 4 pin Molex to traditional Mercury 3 blade P/T traditional 3 blade Mercury connector. The neutral safety switch leads are 6.5 ft.
connector) (1.98 m) long and have bullet connectors on the ends. The lanyard switch leads
(84‑865772T01 & 84‑865772T02 = 4 pin Molex to the Packard 3 pin P/T also have bullet connectors on the ends.
connector) This control is designed for MIE and MCM engines.
Fits all current MCM and Mercury/Mariner 3.4L outboards with external trim The control must use GEN II T/S cables.
cylinders.
PANEL MOUNT REMOTE CONTROL-GEN II- LOCK BAR

MECHANICAL REMOTE CONTROLS The Panel Mount control features a chrome handle and is designed for 161.66
883710A01
WARNING: Cancer - www.P65Warnings.ca.gov
outboard engines w/o power trim. All installations require a separate
Ignition/Choke assembly and T/S cables to complete the installation. The
power trim adapter harness is included to convert 3 pin molex connector to the
traditional 3 blade Mercury connector. The neutral safety switch leads are 6.5 ft.
(1.98 m) long and have bullet connectors on the ends. The lanyard switch leads
also have bullet connectors on the ends.
The control uses GEN II T/S cables.
98 Used on Outboard engines only ‑ Non Trim versions.
