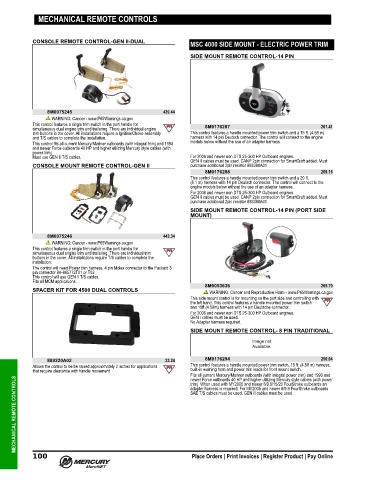

MECHANICAL REMOTE CONTROLS

CONSOLE REMOTE CONTROL-GEN II-DUAL MSC 4000 SIDE MOUNT - ELECTRIC POWER TRIM

SIDE MOUNT REMOTE CONTROL-14 PIN

8M0075245 439.44
WARNING: Cancer - www.P65Warnings.ca.gov
This control features a single trim switch in the port handle for 261.41
simultaneous dual engine trim and trailering. There are individual engine 8M0176287
trim buttons in the cover. All installations require a Ignition/Choke assembly This control features a handle mounted power trim switch and a 15 ft. (4.58 m)
and T/S cables to complete the installation. harness with 14 pin Deutsch connector. The control will connect to the engine
This control fits all current Mercury/Mariner outboards (with integral trim) and 1993 models below without the use of an adapter harness.
and newer Force outboards 40 HP and higher utilizing Mercury style cables (with
power trim).
Must use GEN II T/S cables. For 2006 and newer non DTS 25‑300 HP Outboard engines.
GEN II cables must be used. CANP 2pin connection for SmartCraft added. Must
CONSOLE MOUNT REMOTE CONTROL-GEN II purchase additional 2pin resistor 893388A01
8M0176288 269.16
This control features a handle mounted power trim switch and a 20 ft.
(6.1 m) harness with 14 pin Deutsch connector. The control will connect to the
engine models below without the use of an adapter harness.
For 2006 and newer non DTS 25‑300 HP Outboard engines.
GEN II cables must be used. CANP 2pin connection for SmartCraft added. Must
purchase additional 2pin resistor 893388A01
SIDE MOUNT REMOTE CONTROL-14 PIN (PORT SIDE
MOUNT)

8M0075246 443.34
WARNING: Cancer - www.P65Warnings.ca.gov
This control features a single trim switch in the port handle for
simultaneous dual engine trim and trailering. There are individual trim
buttons in the cover. All installations require T/S cables to complete the
installation.
The control will need Power trim harness, 4 pin Molex connector to the Packard 3
pin connector 84‑865772T01 or T02
This control will use GEN II T/S cables.
Fits all MCM applications.
8M0053636 265.70
SPACER KIT FOR 4500 DUAL CONTROLS WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This side mount control is for mounting on the port side and controlling with
the left hand. This control features a handle mounted power trim switch
and 15ft.(4.58m) harness with 14 pin Deutsche connector.
For 2006 and newer non DTS 25‑300 HP Outboard engines.
GEN I cables must be used.
No Adapter harness required.
SIDE MOUNT REMOTE CONTROL- 8 PIN TRADITIONAL

889220A02 23.24 8M0176294 250.04
Allows the control to be be raised approximately 2 inches for applications This control features a handle mounted power trim switch, 15 ft. (4.58 m) harness,
that require clearance with handle movement built‑in warning horn and power trim leads for front mount switch.
Fits all current Mercury/Mariner outboards (with integral power trim) and 1993 and
MECHANICAL REMOTE CONTROLS SAE T/S cables must be used. GEN II cables must be used.
newer Force outboards 40 HP and higher utilizing Mercury style cables (with power
trim). When used with MY2005 and newer 8/9.9/15/20 FourStroke outboards an
adapter harness is required. For MY2005 and newer 8/9.9 FourStroke outboards
