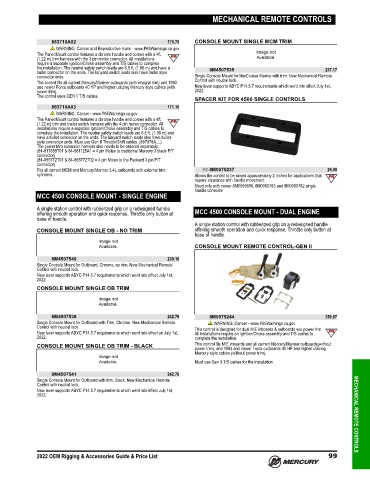

Page 112 - Rigging and Accessories Guide (2022) - 8M0187689

MECHANICAL REMOTE CONTROLS

883710A02 175.70 CONSOLE MOUNT SINGLE MCM TRIM
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The Panel Mount control features a chrome handle and comes with a 4ft.
(1.22 m) trim harness with the 3 pin molex connector. All installations
require a separate Ignition/Choke assembly and T/S cables to complete
the installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and have a 8M4507539 237.17
bullet connector on the ends. The lanyard switch leads also have bullet style
connector ends. Single Console Mount for MerCruiser Marine with trim. New Mechanical Remote
The control fits all current Mercury/Mariner outboards (with integral trim) and 1993 Control with neutral lock.
and newer Force outboards 40 HP and higher utilizing Mercury style cables (with New lever supports ABYC P14.5.7 requirements which went into effect July 1st,
power trim). 2022.
The control uses GEN II T/S cables.
SPACER KIT FOR 4500 SINGLE CONTROLS
883710A03 171.10
WARNING: Cancer - www.P65Warnings.ca.gov
The Panel Mount control features a chrome handle and comes with a 4ft.
(1.22 m) trim and trailer switch harness with the 4 pin molex connector. All
installations require a separate Ignition/Choke assembly and T/S cables to
complete the installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and
have a bullet connector on the ends. The lanyard switch leads also have bullet
style connector ends. Must use Gen II Throttle/Shift cables. (897978A__)
The power trim extension harness also needs to be ordered separately:
(84‑817659T01 & 84‑881125A1 = 4 pin Molex to traditional Mercury 3 blade P/T
connector)
(84‑865772T01 & 84‑865772T02 = 4 pin Molex to the Packard 3 pin P/T
connector)
Fits all current MCM and Mercury/Mariner 3.4L outboards with external trim 98-8M0075237 26.08
cylinders. Allows the control to be raised approximately 2 inches for applications that
require clearance with handle movement
Used only with newer 8M0059686, 8M0060783 and 8M0060782 single
handle consoles
MCC 4500 CONSOLE MOUNT - SINGLE ENGINE
A single station control with rubberized grip on a redesigned handle
offering smooth operation and quick response. Throttle only button at MCC 4500 CONSOLE MOUNT - DUAL ENGINE
base of handle.
A single station control with rubberized grip on a redesigned handle
CONSOLE MOUNT SINGLE OB - NO TRIM offering smooth operation and quick response. Throttle only button at
base of handle.
CONSOLE MOUNT REMOTE CONTROL-GEN II

8M4507540 230.16
Single Console Mount for Outboard. Chrome, no trim. New Mechanical Remote
Control with neutral lock.
New lever supports ABYC P14.5.7 requirements which went into effect July 1st,
2022.
CONSOLE MOUNT SINGLE OB TRIM

8M4507538 242.76 8M0075244 359.97
Single Console Mount for Outboard with Trim, Chrome. New Mechanical Remote WARNING: Cancer - www.P65Warnings.ca.gov
Control with neutral lock. This control is designed for dual MIE inboards & outboards w/o power trim.
New lever supports ABYC P14.5.7 requirements which went into effect on July 1st, All installations require an Ignition/Choke assembly and T/S cables to
2022. complete the installation.
CONSOLE MOUNT SINGLE OB TRIM - BLACK This control fits MIE inboards and all current Mercury/Mariner outboards(without
power trim), and 1993 and newer Force outboards 40 HP and higher utilizing
Mercury style cables (without power trim).
Must use Gen II T/S cables for the installation.

8M4507541 242.76
Single Console Mount for Outboard with trim, Black. New Mechanical Remote
Control with neutral lock.
New lever supports ABYC P14.5.7 requirements which went into effect July 1st,
2022. MECHANICAL REMOTE CONTROLS

2022 OEM Rigging & Accessories Guide & Price List 99
