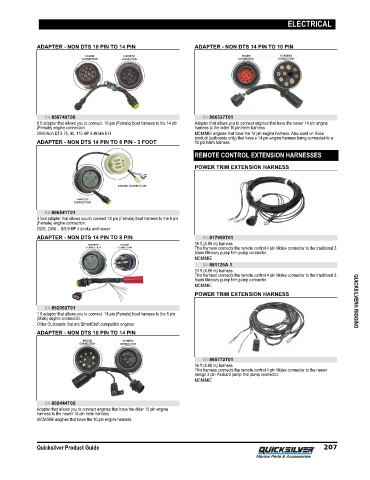

Page 216 - Quicksilver Product Guide (2020) - 8M0163242

ELECTRICAL

ADAPTER - NON DTS 10 PIN TO 14 PIN ADAPTER - NON DTS 14 PIN TO 10 PIN

84-858740T06 84-866337T01
6 ft adapter that allows you to connect 10 pin (Female) boat harness to the 14 pin Adapter that allows you to connect engines that have the newer 14 pin engine
(Female) engine connection. harness to the older 10 pin helm harness
2006 Non DTS 75, 90, 115 HP 4 stroke EFI MCM/MIE engines that have the 14 pin engine harness. Also used on Race
product (outboards only) that have a 14 pin engine harness being connected to a
ADAPTER - NON DTS 14 PIN TO 8 PIN - 3 FOOT 10 pin helm harness.
REMOTE CONTROL EXTENSION HARNESSES

POWER TRIM EXTENSION HARNESS

84-896541T01
3 foot adapter that allows you to connect 14 pin (Female) boat harness to the 8 pin
(Female) engine connection.
2005, 2006 ‑ 8/9.9 HP 4 stroke and newer
ADAPTER - NON DTS 14 PIN TO 8 PIN 84-817659T01
16 ft.(4.88 m) harness.
This harness connects the remote control 4 pin Molex connector to the traditional 3
blade Mercury pump trim pump connector.
MCM/MIE
84-881125A 1
24 ft.(4.88 m) harness.
This harness connects the remote control 4 pin Molex connector to the traditional 3
blade Mercury pump trim pump connector.
MCM/MIE
POWER TRIM EXTENSION HARNESS

84-892092T01 QUICKSILVER® RIGGING
1 ft adapter that allows you to connect 14 pin (Female) boat harness to the 8 pin
(Male) engine connection.
Older Outboards that are SmartCraft compatible engines
ADAPTER - NON DTS 10 PIN TO 14 PIN

84-865772T01
16 ft.(4.88 m) harness.
This harness connects the remote control 4 pin Molex connector to the newer
design 3 pin Packard pump trim pump connector.
MCM/MIE

84-892444T02
Adapter that allows you to connect engines that have the older 10 pin engine
harness to the newer 14 pin helm harness
MCM/MIE engines that have the 10 pin engine harness.

Quicksilver Product Guide 207
