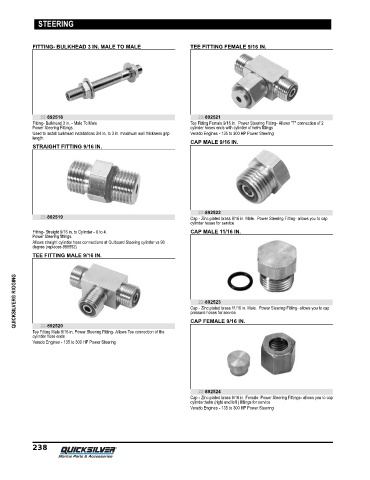

Page 247 - Quicksilver Product Guide (2020) - 8M0163242

STEERING

FITTING- BULKHEAD 3 IN. MALE TO MALE TEE FITTING FEMALE 9/16 IN.

22-892518 22-892521
Fitting‑ Bulkhead 3 in. ‑ Male To Male Tee Fitting Female 9/16 in. Power Steering Fitting‑ Allows "T" connection of 2
Power Steering Fittings. cylinder hoses ends with cylinder of helm fittings
Used to install bulkhead installations 3/4 in. to 3 in. maximum wall thickness grip Verado Engines ‑ 135 to 300 HP Power Steering
length.
CAP MALE 9/16 IN.
STRAIGHT FITTING 9/16 IN.

22-892522
22-892519 Cap ‑ Zinc plated brass 9/16 in. Male. Power Steering Fitting‑ allows you to cap
cylinder hoses for service
Fitting‑ Straight 9/16 in. to Cylinder ‑ 6 to 4. CAP MALE 11/16 IN.
Power Steering fittings.
Allows straight cylinder hose connections at Outboard Steering cylinder vs 90
degree (replaces 889552)
TEE FITTING MALE 9/16 IN.

QUICKSILVER® RIGGING Cap ‑ Zinc plated brass 11/16 in. Male. Power Steering Fitting‑ allows you to cap

22-892523
pressure hoses for service

22-892520
Tee Fitting Male 9/16 in. Power Steering Fitting‑ Allows Tee connection of the CAP FEMALE 9/16 IN.
cylinder hose ends
Verado Engines ‑ 135 to 300 HP Power Steering

22-892524
Cap ‑ Zinc plated brass 9/16 in. Female. Power Steering Fittings‑ allows you to cap
cylinder:helm (right and left ) fittings for service
Verado Engines ‑ 135 to 300 HP Power Steering
