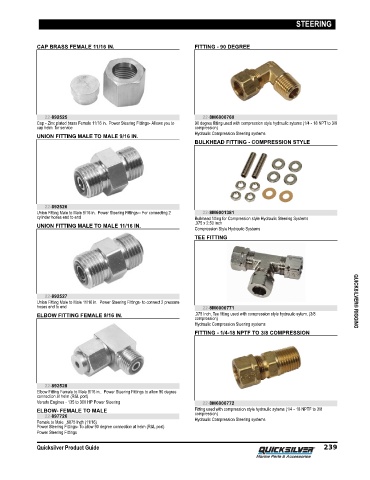

Page 248 - Quicksilver Product Guide (2020) - 8M0163242

STEERING

CAP BRASS FEMALE 11/16 IN. FITTING - 90 DEGREE

22-892525 22-8M6000760
Cap ‑ Zinc plated brass Female 11/16 in. Power Steering Fittings‑ Allows you to 90 degree fitting used with compression style hydraulic sytems (1/4 ‑ 18 NPT to 3/8
cap helm for service compression)
Hydraulic Compression Steering systems
UNION FITTING MALE TO MALE 9/16 IN.
BULKHEAD FITTING - COMPRESSION STYLE

22-892526
Union Fitting Male to Male 9/16 in. Power Steering Fittings‑‑ For connecting 2 22-8M6001381
cylinder hoses end to end Bulkhead fitting for Compression style Hydraulic Steering Systems
UNION FITTING MALE TO MALE 11/16 IN. .375 x 2.50 inch
Compression Style Hydraulic Systems
TEE FITTING

22-892527
Union Fitting Male to Male 11/16 in. Power Steering Fittings‑ to connect 2 pressure QUICKSILVER® RIGGING
hoses end to end 22-8M6000771
ELBOW FITTING FEMALE 9/16 IN. .375 Inch, Tee fitting used with compression style hydraulic sytem. (3/8
compression)
Hydraulic Compression Steering systems
FITTING - 1/4-18 NPTF TO 3/8 COMPRESSION

22-892528
Elbow Fitting Female to Male 9/16 in.. Power Steering Fittings to allow 90 degree
connection at helm (R&L port)
Verado Engines ‑ 135 to 300 HP Power Steering 22-8M6000772
ELBOW- FEMALE TO MALE Fitting used with compression style hydraulic sytems (1/4 ‑ 18 NPTF to 3/8
22-897726 compression)
Female to Male .6875 Inch (11/16) Hydraulic Compression Steering systems
Power Steering Fittings‑ To allow 90 degree connection at helm (R&L port)
Power Steering Fittings

Quicksilver Product Guide 239
