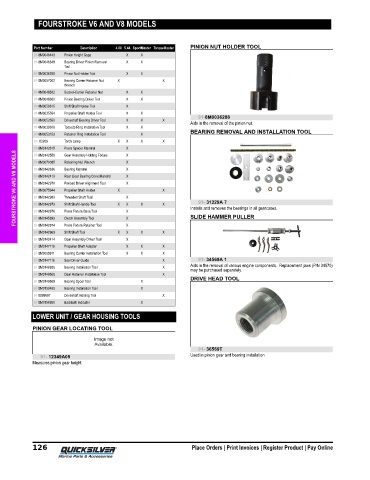

Page 133 - Mercury Service Tool Guide (2020) - 8M0163249

FOURSTROKE V6 AND V8 MODELS

Part Number Description 4.80 5.44 SportMaster TorqueMaster PINION NUT HOLDER TOOL
91-8M0046443 Pinion Height Gage X X
91-8M0046348 Bearing Driver Pinion Removal X X
Tool
91-8M0036288 Pinion Nut Holder Tool X X
91-8M0057002 Bearing Carrier Retainer Nut X X
Wrench
91-8M0046632 Socket-Carrier Retainer Nut X X
91-8M0046360 Pinion Bearing Driver Tool X X
91-8M0050615 Shift Shaft Holder Tool X
91-8M0035594 Propeller Shaft Holder Tool X X
91-8M0036288
91-8M0052590 Driveshaft Bearing Driver Tool X X X
Aids in the removal of the pinion nut.
91-8M0039309 Torpedo Ring Installation Tool X X
BEARING REMOVAL AND INSTALLATION TOOL
91-8M0053153 Retainer Ring Installation Tool X
91- 63209 Torch Lamp X X X X
91-8M0142615 Press Spacer Mandrel X X X
FOURSTROKE V6 AND V8 MODELS 91-8M0142636 Bearing Mandrel X X X X X X X X X X Installs and removes the bearings in all gearcases.
Gear Assembly Holding Fixture
91-8M0142559
Retaining Nut Wrench
91-8M0070085
Rear Gear Bearing Cone Mandrel
91-8M0142413
Preload Driver Alignment Tool
91-8M0142970
Propeller Shaft Holder
91-8M0075944
Threaded Shaft Tool
91-8M0142983
91- 31229A 7
91-8M0142973
Shift Shaft Handle Tool
91-8M0142976
91-8M0145393
Clutch Assembly Tool
Press Fixture Retainer Tool
91-8M0142974
Shift Shaft Tool
91-8M0142969 Press Fixture Base Tool X X X X X X X SLIDE HAMMER PULLER
91-8M0142414 Gear Assembly Driver Tool X
91-8M0147118 Propeller Shaft Adapter X X X
91-8M0059911 Bearing Carrier Installation Tool X X X
91-8M0147116 Seal Driver Guide X 91- 34569A 1
91-8M0146935 Bearing Installation Tool X Aids in the removal of various engine components. Replacement jaws (P/N 34570)
may be purchased separately.
91-8M0148865 Gear Retainer Installation Tool X
DRIVE HEAD TOOL
91-8M0148869 Bearing Spool Tool X
91-8M0150485 Bearing Installation Tool X
91-889958T Driveshaft Holding Tool X
91-8M0156950 Backlash Indicator X
LOWER UNIT / GEAR HOUSING TOOLS
PINION GEAR LOCATING TOOL

91- 36569T
91- 12349A05 Used in pinion gear and bearing installation.
Measures pinion gear height.
