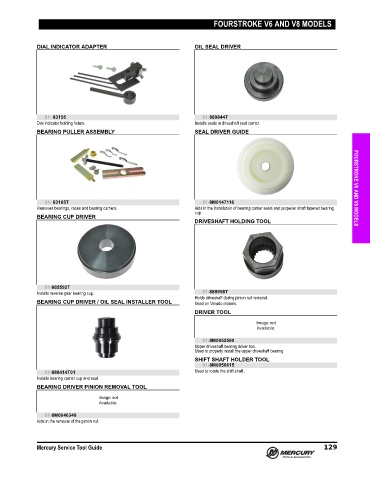

FOURSTROKE V6 AND V8 MODELS

DIAL INDICATOR ADAPTER OIL SEAL DRIVER

91- 83155 91-889844T
Dial indicator holding fixture. Installs seals in driveshaft seal carrier.
BEARING PULLER ASSEMBLY SEAL DRIVER GUIDE

91- 83165T 91-8M0147116 FOURSTROKE V6 AND V8 MODELS
Removes bearings, races and bearing carriers. Aids in the installation of bearing carrier seals and propeller shaft tapered bearing
cup.
BEARING CUP DRIVER
DRIVESHAFT HOLDING TOOL

91-885592T
Installs reverse gear bearing cup. 91-889958T
Holds driveshaft during pinion nut removal.
BEARING CUP DRIVER / OIL SEAL INSTALLER TOOL Used on Verado models.
DRIVER TOOL

91-8M0052590
Upper driveshaft bearing driver tool.
Used to properly install the upper driveshaft bearing
SHIFT SHAFT HOLDER TOOL
91-8M0050615
91-888414T01 Used to rotate the shift shaft .
Installs bearing carrier cup and seal.
BEARING DRIVER PINION REMOVAL TOOL

91-8M0046348
Aids in the removal of the pinion nut.

Mercury Service Tool Guide 129
