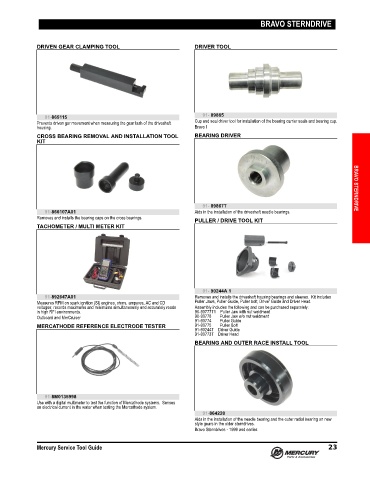

BRAVO STERNDRIVE

DRIVEN GEAR CLAMPING TOOL DRIVER TOOL

91-865115 91- 89865
Prevents driven gar movement when measuring the gear lash of the driveshaft Cup and seal driver tool for installation of the bearing carrier seals and bearing cup.
housing. Bravo I
CROSS BEARING REMOVAL AND INSTALLATION TOOL BEARING DRIVER
KIT

91- 89867T BRAVO STERNDRIVE
91-866107A01 Aids in the installation of the driveshaft needle bearings.
Removes and installs the bearing caps on the cross bearings.
PULLER / DRIVE TOOL KIT
TACHOMETER / MULTI METER KIT

91- 90244A 1
91-892647A01 Removes and installs the driveshaft housing bearings and sleeves. Kit includes
Measures RPM on spark ignition (SI) engines. ohms, amperes, AC and CD Puller Jaws, Puller Guide, Puller bolt, Driver Guide and Driver Head.
voltages; records maximums and minimums simultaneously and accurately reads Assembly includes the following and can be purchased separately:
in high RFI environments. 90‑90777T1 Puller Jaw with nut weldment
Outboard and MerCruiser 90‑90778 Puller Jaw w/o nut weldment
91‑90774 Puller Guide
MERCATHODE REFERENCE ELECTRODE TESTER 91‑90775 Puller Bolt
91‑90244T Driver Guide
91‑90773T Driver Head
BEARING AND OUTER RACE INSTALL TOOL

91-8M0135998
Use with a digital multimeter to test the function of Mercathode systems. Senses
an electrical current in the water when testing the Mercathode system.
91-864220
Aids in the installation of the needle bearing and the outer radial bearing on new
style gears in the older sterndrives.
Bravo Sterndrives ‑ 1999 and earlier.
