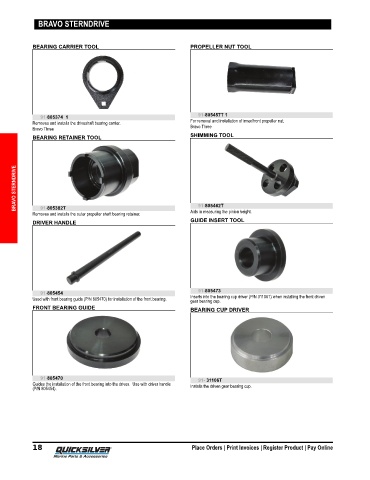

BRAVO STERNDRIVE
BEARING CARRIER TOOL PROPELLER NUT TOOL
91-805457T 1
91-805374 1
Removes and installs the driveshaft bearing carrier. For removal and installation of inner/front propeller nut.
Bravo Three Bravo Three
BEARING RETAINER TOOL SHIMMING TOOL
BRAVO STERNDRIVE
91-805462T
91-805382T
Removes and installs the outer propeller shaft bearing retainer. Aids in measuring the pinion height.
DRIVER HANDLE GUIDE INSERT TOOL
91-805473
91-805454
Used with front bearing guide (P/N 805470) for installation of the front bearing. Inserts into the bearing cup driver (P/N 31106T) when installing the front driven
gear bearing cup.
FRONT BEARING GUIDE BEARING CUP DRIVER
91-805470 91- 31106T
Guides the installation of the front bearing into the drives. Use with driver handle Installs the driven gear bearing cup.
(P/N 805454).
