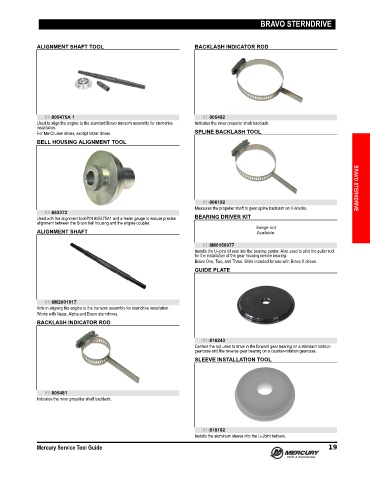

Page 26 - Mercury Service Tool Guide (2020) - 8M0163249

BRAVO STERNDRIVE

ALIGNMENT SHAFT TOOL BACKLASH INDICATOR ROD

91-805475A 1 91-805482
Used to align the engine to the standard Bravo transom assembly for sterndrive Indicates the inner propeller shaft backlash.
installation.
For MerCruiser drives, except Vazer drives. SPLINE BACKLASH TOOL
BELL HOUSING ALIGNMENT TOOL

91-806192 BRAVO STERNDRIVE
Measures the propeller shaft to gear spline backlash on V‑blocks.
91-863372
Used with the alignment tool P/N 805475A1 and a feeler gauge to ensure precise BEARING DRIVER KIT
alignment between the Bravo bell housing and the engine coupler.
ALIGNMENT SHAFT

91-8M0156977
Installs the U‑joint oil seal into the bearing carrier. Also used to pilot the puller rod
for the installation of the gear housing needle bearing.
Bravo One, Two, and Three. Shim included for use with Bravo X drives.
GUIDE PLATE

91-8M2001017
Aids in aligning the engine to the transom assembly for sterndrive installation.
Works with Vazer, Alpha and Bravo sterndrives.
BACKLASH INDICATOR ROD

91-816243
Centers the rod used to drive in the forward gear bearing on a standard rotation
gearcase and the reverse gear bearing on a counter‑rotation gearcase.
SLEEVE INSTALLATION TOOL

91-805481
Indicates the inner propeller shaft backlash.

91-818162
Installs the aluminum sleeve into the U‑Joint bellows.

Mercury Service Tool Guide 19
