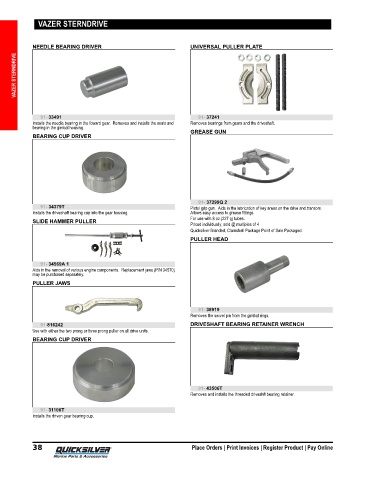

Page 45 - Mercury Service Tool Guide (2020) - 8M0163249

VAZER STERNDRIVE

NEEDLE BEARING DRIVER UNIVERSAL PULLER PLATE
VAZER STERNDRIVE

91- 33491 91- 37241
Installs the needle bearing in the foward gear. Removes and installs the seals and Removes bearings from gears and the driveshaft.
bearing in the gimbal housing.
GREASE GUN
BEARING CUP DRIVER

91- 37299Q 2
91- 34379T Pistol grip gun. Aids in the lubrication of key areas on the drive and transom.
Installs the driveshaft bearing cup into the gear housing. Allows easy access to grease fittings.
For use with 8 oz.(227 g) tubes.
SLIDE HAMMER PULLER
Priced individually, sold @ multiples of 4
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
PULLER HEAD

91- 34569A 1
Aids in the removal of various engine components. Replacement jaws (P/N 34570)
may be purchased separately.
PULLER JAWS

91- 38919
Removes the swivel pin from the gimbal rings.
91-816242 DRIVESHAFT BEARING RETAINER WRENCH
Use with either the two prong or three prong puller on all drive units.
BEARING CUP DRIVER

91- 43506T
Removes and installs the threaded driveshft bearing retainer.

91- 31106T
Installs the driven gear bearing cup.
