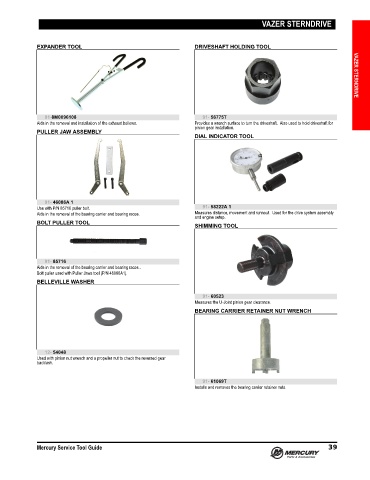

VAZER STERNDRIVE
EXPANDER TOOL DRIVESHAFT HOLDING TOOL VAZER STERNDRIVE
91-8M0096108 91- 56775T
Aids in the removal and installation of the exhaust bellows. Provides a wrench surface to turn the driveshaft. Also used to hold driveshaft for
pinion gear installation.
PULLER JAW ASSEMBLY
DIAL INDICATOR TOOL
91- 46086A 1
Use with P/N 85716 puller bolt. 91- 58222A 1
Aids in the removal of the bearing carrier and bearing races. Measures distance, movement and runnout. Used for the drive system assembly
and engine setup.
BOLT PULLER TOOL
SHIMMING TOOL
91- 85716
Aids in the removal of the bearing carrier and bearing races..
Bolt puller used with Puller Jaws tool (P/N 46086A1).
BELLEVILLE WASHER
91- 60523
Measures the U‑Joint pinion gear clearance.
BEARING CARRIER RETAINER NUT WRENCH
12- 54048
Used with pinion nut wrench and a propeller nut to check the reversed gear
backlash.
91- 61069T
Installs and removes the bearing carrier retainer nuts.
