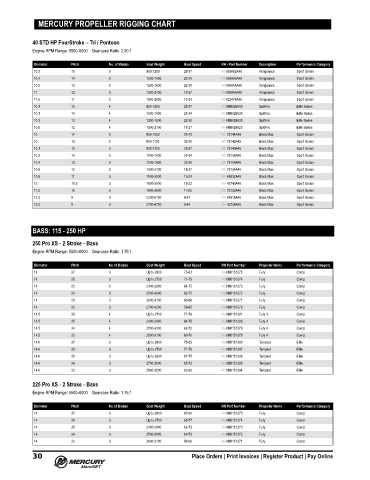

MERCURY PROPELLER RIGGING CHART
40 STD HP FourStroke – Tri / Pontoon
Engine RPM Range: 5500‑6000 Gearcase Ratio: 2.00:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
10.3 15 3 900-1200 29-37 48-855862A46 Vengeance Sport Series
10.4 14 3 1000-1400 25-34 48-855860A46 Vengeance Sport Series
10.5 13 3 1200-1600 22-30 48-855858A46 Vengeance Sport Series
11 12 3 1300-2100 18-27 48-855856A46 Vengeance Sport Series
11.6 11 3 1500-2500 15-24 48-823478A46 Vengeance Sport Series
10.1 15 4 900-1200 29-37 48-8M8026640 SpitFire Elite Series
10.1 14 4 1000-1400 25-34 48-8M8026635 SpitFire Elite Series
10.3 13 4 1200-1600 22-30 48-8M8026630 SpitFire Elite Series
10.6 12 4 1300-2100 18-27 48-8M8026625 SpitFire Elite Series
10 17 3 800-1000 35-43 48- 73144A45 Black Max Sport Series
10 16 3 800-1100 32-40 48- 73142A45 Black Max Sport Series
10.1 15 3 900-1200 29-37 48- 73140A45 Black Max Sport Series
10.3 14 3 1000-1400 25-34 48- 73138A45 Black Max Sport Series
10.4 13 3 1200-1600 22-30 48- 73136A45 Black Max Sport Series
10.6 12 3 1300-2100 18-27 48- 73134A45 Black Max Sport Series
10.8 11 3 1500-2500 15-24 48- 85632A45 Black Max Sport Series
12 10.5 3 1600-3000 13-22 48- 42740A45 Black Max Sport Series
11.3 10 3 1800-3600 11-20 48- 73132A45 Black Max Sport Series
12.3 9 3 2200-5100 8-17 48- 87818A45 Black Max Sport Series
12.5 8 3 2700-8700 5-14 48- 42738A45 Black Max Sport Series
BASS: 115 - 250 HP
250 Pro XS ‑ 2 Stroke ‑ Bass
Engine RPM Range: 5500‑6000 Gearcase Ratio: 1.75:1
Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Category
14 27 3 Up to 2600 75-83 48-8M0151275 Fury Comp
14 26 3 Up to 2700 71-79 48-8M0151274 Fury Comp
14 25 3 2400-2900 64-75 48-8M0151273 Fury Comp
14 24 3 2500-3000 62-75 48-8M0151272 Fury Comp
14 23 3 2600-3100 60-68 48-8M0151271 Fury Comp
14 22 3 2700-3200 58-65 48-8M0151270 Fury Comp
14.5 26 4 Up to 2700 71-79 48-8M0151281 Fury 4 Comp
14.5 25 4 2400-2900 64-75 48-8M0151280 Fury 4 Comp
14.5 24 4 2500-3000 62-72 48-8M0151279 Fury 4 Comp
14.5 23 4 2600-3100 60-70 48-8M0151278 Fury 4 Comp
14.6 27 3 Up to 2600 75-83 48-8M0151388 Tempest Elite
14.6 26 3 Up to 2700 71-79 48-8M0151387 Tempest Elite
14.6 25 3 Up to 2800 67-75 48-8M0151386 Tempest Elite
14.6 24 3 2700-3000 65-72 48-8M0151385 Tempest Elite
14.6 23 3 2900-3200 62-68 48-8M0151384 Tempest Elite
225 Pro XS ‑ 2 Stroke ‑ Bass
Engine RPM Range: 5500‑6000 Gearcase Ratio: 1.75:1
Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Category
14 27 3 Up to 2600 67-80 48-8M0151275 Fury Comp
14 26 3 Up to 2700 65-77 48-8M0151274 Fury Comp
14 25 3 2400-2900 62-73 48-8M0151273 Fury Comp
14 24 3 2500-3000 60-73 48-8M0151272 Fury Comp
14 23 3 2600-3100 58-68 48-8M0151271 Fury Comp
