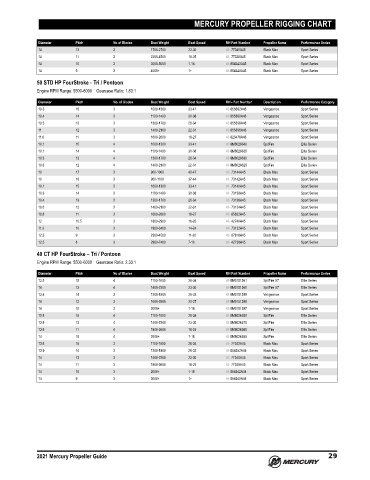

MERCURY PROPELLER RIGGING CHART
Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Series
14 13 3 1700-2700 23-30 48- 77340A45 Black Max Sport Series
14 11 3 2300-4500 18-25 48- 77338A45 Black Max Sport Series
14 10 3 3000-5000 1-18 48-854342A45 Black Max Sport Series
14 9 3 4000+ 1+ 48-854340A45 Black Max Sport Series
50 STD HP FourStroke ‑ Tri / Pontoon
Engine RPM Range: 5500‑6000 Gearcase Ratio: 1.83:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
10.3 15 3 1000-1300 33-41 48-855862A46 Vengeance Sport Series
10.4 14 3 1100-1400 30-38 48-855860A46 Vengeance Sport Series
10.5 13 3 1300-1700 26-34 48-855858A46 Vengeance Sport Series
11 12 3 1400-2100 22-31 48-855856A46 Vengeance Sport Series
11.6 11 3 1600-2600 18-27 48-823478A46 Vengeance Sport Series
10.1 15 4 1000-1300 33-41 48-8M8026640 SpitFire Elite Series
10.1 14 4 1100-1400 30-38 48-8M8026635 SpitFire Elite Series
10.3 13 4 1300-1700 26-34 48-8M8026630 SpitFire Elite Series
10.6 12 4 1400-2100 22-31 48-8M8026625 SpitFire Elite Series
10 17 3 900-1000 40-47 48- 73144A45 Black Max Sport Series
10 16 3 900-1100 37-44 48- 73142A45 Black Max Sport Series
10.1 15 3 1000-1300 33-41 48- 73140A45 Black Max Sport Series
10.3 14 3 1100-1400 30-38 48- 73138A45 Black Max Sport Series
10.4 13 3 1300-1700 26-34 48- 73136A45 Black Max Sport Series
10.6 12 3 1400-2100 22-31 48- 73134A45 Black Max Sport Series
10.8 11 3 1600-2600 18-27 48- 85632A45 Black Max Sport Series
12 10.5 3 1800-2900 16-25 48- 42740A45 Black Max Sport Series
11.3 10 3 1900-3400 14-24 48- 73132A45 Black Max Sport Series
12.3 9 3 2300-4500 11-20 48- 87818A45 Black Max Sport Series
12.5 8 3 2900-7400 7-16 48- 42738A45 Black Max Sport Series
40 CT HP FourStroke – Tri / Pontoon
Engine RPM Range: 5500‑6000 Gearcase Ratio: 2.33:1
Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Series
13.5 15 4 1100-1600 28-34 48-8M0151361 SpitFire X7 Elite Series
14 13 4 1400-2200 23-30 48-8M0151360 SpitFire X7 Elite Series
13.4 14 3 1200-1800 26-32 48-8M0151399 Vengeance Sport Series
14 12 3 1600-2800 20-27 48-8M0151398 Vengeance Sport Series
14 10 3 2000+ 1-18 48-8M0151397 Vengeance Sport Series
12.8 15 4 1100-1600 28-34 48-8M8026580 SpitFire Elite Series
13.8 13 4 1400-2200 23-30 48-8M8026570 SpitFire Elite Series
13.8 11 4 1800-3600 18-25 48-8M8026560 SpitFire Elite Series
14 10 4 2000+ 1-18 48-8M8026555 SpitFire Elite Series
13.8 15 3 1100-1600 28-34 48- 77342A45 Black Max Sport Series
13.9 14 3 1200-1800 26-32 48-854352A45 Black Max Sport Series
14 13 3 1400-2200 23-30 48- 77340A45 Black Max Sport Series
14 11 3 1800-3600 18-25 48- 77338A45 Black Max Sport Series
14 10 3 2000+ 1-18 48-854342A45 Black Max Sport Series
14 9 3 3000+ 1+ 48-854340A45 Black Max Sport Series
2021 Mercury Propeller Guide 29
