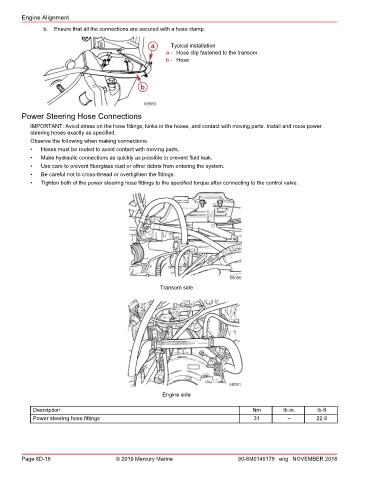

Page 304 - REPOWER REFERENCE GUIDE (2020)

Engine Alignment
b. Ensure that all the connections are secured with a hose clamp.

a Typical installation
a - Hose clip fastened to the transom
b - Hose

b

68089
Power Steering Hose Connections
IMPORTANT: Avoid stress on the hose fittings, kinks in the hoses, and contact with moving parts. Install and route power
steering hoses exactly as specified.
Observe the following when making connections.
• Hoses must be routed to avoid contact with moving parts.
• Make hydraulic connections as quickly as possible to prevent fluid leak.
• Use care to prevent fiberglass dust or other debris from entering the system.
• Be careful not to cross‑thread or overtighten the fittings.
• Tighten both of the power steering hose fittings to the specified torque after connecting to the control valve.

68090
Transom side

68091
Engine side

Description Nm lb‑in. lb‑ft
Power steering hose fittings 31 – 22.9
