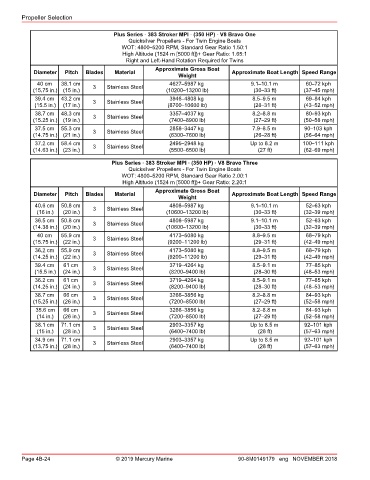

Page 72 - REPOWER REFERENCE GUIDE (2020)

Propeller Selection

Plus Series ‑ 383 Stroker MPI ‑ (350 HP) ‑ V8 Bravo One
Quicksilver Propellers ‑ For Twin Engine Boats
WOT: 4800–5200 RPM, Standard Gear Ratio 1.50:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 1.65:1
Right and Left‑Hand Rotation Required for Twins
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40 cm 38.1 cm 4627–5987 kg 9.1–10.1 m 60–72 kph
(15.75 in.) (15 in.) 3 Stainless Steel (10200–13200 lb) (30–33 ft) (37–45 mph)
39.4 cm 43.2 cm 3 Stainless Steel 3946–4808 kg 8.5–9.5 m 69–84 kph
(15.5 in.) (17 in.) (8700–10600 lb) (28–31 ft) (43–52 mph)
38.7 cm 48.3 cm 3357–4037 kg 8.2–8.8 m 80–93 kph
(15.25 in.) (19 in.) 3 Stainless Steel (7400–8900 lb) (27–29 ft) (50–58 mph)
37.5 cm 55.3 cm 3 Stainless Steel 2858–3447 kg 7.9–8.5 m 90–103 kph
(14.75 in.) (21 in.) (6300–7600 lb) (26–28 ft) (56–64 mph)
37.2 cm 58.4 cm 2495–2948 kg Up to 8.2 m 100–111 kph
(14.63 in.) (23 in.) 3 Stainless Steel (5500–6500 lb) (27 ft) (62–69 mph)

Plus Series ‑ 383 Stroker MPI ‑ (350 HP) ‑ V8 Bravo Three
Quicksilver Propellers ‑ For Twin Engine Boats
WOT: 4800–5200 RPM, Standard Gear Ratio 2.00:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 2.20:1
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40.6 cm 50.8 cm 4808–5987 kg 9.1–10.1 m 52–63 kph
(16 in.) (20 in.) 3 Stainless Steel (10600–13200 lb) (30–33 ft) (32–39 mph)
36.5 cm 50.8 cm 3 Stainless Steel 4808–5987 kg 9.1–10.1 m 52–63 kph
(14.38 in.) (20 in.) (10600–13200 lb) (30–33 ft) (32–39 mph)
40 cm 55.9 cm 4173–5080 kg 8.8–9.5 m 68–79 kph
(15.75 in.) (22 in.) 3 Stainless Steel (9200–11200 lb) (29–31 ft) (42–49 mph)
36.2 cm 55.9 cm 3 Stainless Steel 4173–5080 kg 8.8–9.5 m 68–79 kph
(14.25 in.) (22 in.) (9200–11200 lb) (29–31 ft) (42–49 mph)
39.4 cm 61 cm 3719–4264 kg 8.5–9.1 m 77–85 kph
(15.5 in.) (24 in.) 3 Stainless Steel (8200–9400 lb) (28–30 ft) (48–53 mph)
36.2 cm 61 cm 3719–4264 kg 8.5–9.1 m 77–85 kph
(14.25 in.) (24 in.) 3 Stainless Steel (8200–9400 lb) (28–30 ft) (48–53 mph)
38.7 cm 66 cm 3 Stainless Steel 3266–3856 kg 8.2–8.8 m 84–93 kph
(15.25 in.) (26 in.) (7200–8500 lb) (27–29 ft) (52–58 mph)
35.6 cm 66 cm 3266–3856 kg 8.2–8.8 m 84–93 kph
(14 in.) (26 in.) 3 Stainless Steel (7200–8500 lb) (27–29 ft) (52–58 mph)
38.1 cm 71.1 cm 3 Stainless Steel 2903–3357 kg Up to 8.5 m 92–101 kph
(15 in.) (28 in.) (6400–7400 lb) (28 ft) (57–63 mph)
34.9 cm 71.1 cm 2903–3357 kg Up to 8.5 m 92–101 kph
(13.75 in.) (28 in.) 3 Stainless Steel (6400–7400 lb) (28 ft) (57–63 mph)
