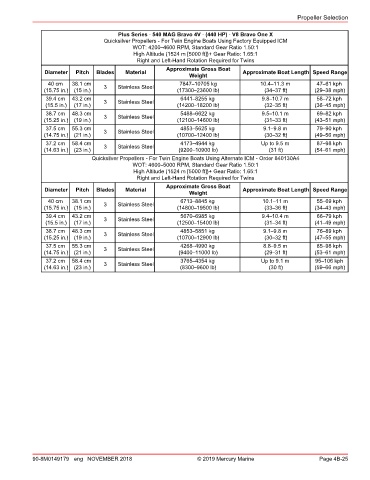

Page 73 - REPOWER REFERENCE GUIDE (2020)

Propeller Selection

Plus Series ‑ 540 MAG Bravo 4V ‑ (440 HP) ‑ V8 Bravo One X
Quicksilver Propellers ‑ For Twin Engine Boats Using Factory Equipped ICM
WOT: 4200–4600 RPM, Standard Gear Ratio 1.50:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 1.65:1
Right and Left‑Hand Rotation Required for Twins
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40 cm 38.1 cm 7847–10705 kg 10.4–11.3 m 47–61 kph
(15.75 in.) (15 in.) 3 Stainless Steel (17300–23600 lb) (34–37 ft) (29–38 mph)
39.4 cm 43.2 cm 3 Stainless Steel 6441–8255 kg 9.8–10.7 m 58–72 kph
(15.5 in.) (17 in.) (14200–18200 lb) (32–35 ft) (36–45 mph)
38.7 cm 48.3 cm 5488–6622 kg 9.5–10.1 m 69–82 kph
(15.25 in.) (19 in.) 3 Stainless Steel (12100–14600 lb) (31–33 ft) (43–51 mph)
37.5 cm 55.3 cm 3 Stainless Steel 4853–5625 kg 9.1–9.8 m 79–90 kph
(14.75 in.) (21 in.) (10700–12400 lb) (30–32 ft) (49–56 mph)
37.2 cm 58.4 cm 4173–4944 kg Up to 9.5 m 87–98 kph
(14.63 in.) (23 in.) 3 Stainless Steel (9200–10900 lb) (31 ft) (54–61 mph)
Quicksilver Propellers ‑ For Twin Engine Boats Using Alternate ICM ‑ Order 840130A4
WOT: 4600–5000 RPM, Standard Gear Ratio 1.50:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 1.65:1
Right and Left‑Hand Rotation Required for Twins
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40 cm 38.1 cm 3 Stainless Steel 6713–8845 kg 10.1–11 m 55–69 kph
(15.75 in.) (15 in.) (14800–19500 lb) (33–36 ft) (34–43 mph)
39.4 cm 43.2 cm 5670–6985 kg 9.4–10.4 m 66–79 kph
(15.5 in.) (17 in.) 3 Stainless Steel (12500–15400 lb) (31–34 ft) (41–49 mph)
38.7 cm 48.3 cm 4853–5851 kg 9.1–9.8 m 76–89 kph
(15.25 in.) (19 in.) 3 Stainless Steel (10700–12900 lb) (30–32 ft) (47–55 mph)
37.5 cm 55.3 cm 3 Stainless Steel 4268–4990 kg 8.8–9.5 m 85–98 kph
(14.75 in.) (21 in.) (9400–11000 lb) (29–31 ft) (53–61 mph)
37.2 cm 58.4 cm 3765–4354 kg Up to 9.1 m 95–106 kph
(14.63 in.) (23 in.) 3 Stainless Steel (8300–9600 lb) (30 ft) (59–66 mph)

90-8M0149179 eng NOVEMBER 2018 © 2019 Mercury Marine Page 4B-25
