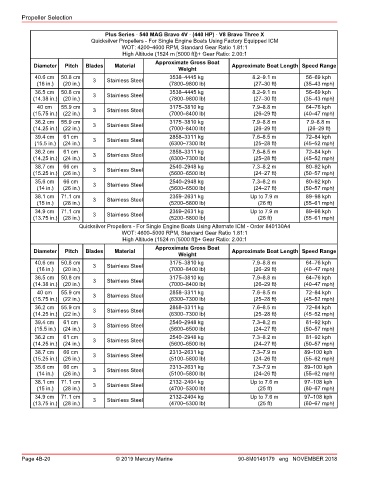

Propeller Selection

Plus Series ‑ 540 MAG Bravo 4V ‑ (440 HP) ‑ V8 Bravo Three X
Quicksilver Propellers ‑ For Single Engine Boats Using Factory Equipped ICM
WOT: 4200–4600 RPM, Standard Gear Ratio 1.81:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 2.00:1
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40.6 cm 50.8 cm 3538–4445 kg 8.2–9.1 m 56–69 kph
(16 in.) (20 in.) 3 Stainless Steel (7800–9800 lb) (27–30 ft) (35–43 mph)
36.5 cm 50.8 cm 3 Stainless Steel 3538–4445 kg 8.2–9.1 m 56–69 kph
(14.38 in.) (20 in.) (7800–9800 lb) (27–30 ft) (35–43 mph)
40 cm 55.9 cm 3175–3810 kg 7.9–8.8 m 64–76 kph
(15.75 in.) (22 in.) 3 Stainless Steel (7000–8400 lb) (26–29 ft) (40–47 mph)
36.2 cm 55.9 cm 3175–3810 kg 7.9–8.8 m 7.9–8.8 m
(14.25 in.) (22 in.) 3 Stainless Steel (7000–8400 lb) (26–29 ft) (26–29 ft)
39.4 cm 61 cm 3 Stainless Steel 2858–3311 kg 7.6–8.5 m 72–84 kph
(15.5 in.) (24 in.) (6300–7300 lb) (25–28 ft) (45–52 mph)
36.2 cm 61 cm 2858–3311 kg 7.6–8.5 m 72–84 kph
(14.25 in.) (24 in.) 3 Stainless Steel (6300–7300 lb) (25–28 ft) (45–52 mph)
38.7 cm 66 cm 3 Stainless Steel 2540–2948 kg 7.3–8.2 m 80–92 kph
(15.25 in.) (26 in.) (5600–6500 lb) (24–27 ft) (50–57 mph)
35.6 cm 66 cm 3 Stainless Steel 2540–2948 kg 7.3–8.2 m 80–92 kph
(14 in.) (26 in.) (5600–6500 lb) (24–27 ft) (50–57 mph)
38.1 cm 71.1 cm 2359–2631 kg Up to 7.9 m 89–98 kph
(15 in.) (28 in.) 3 Stainless Steel (5200–5800 lb) (26 ft) (55–61 mph)
34.9 cm 71.1 cm 3 Stainless Steel 2359–2631 kg Up to 7.9 m 89–98 kph
(13.75 in.) (28 in.) (5200–5800 lb) (26 ft) (55–61 mph)
Quicksilver Propellers ‑ For Single Engine Boats Using Alternate ICM ‑ Order 840130A4
WOT: 4600–5000 RPM, Standard Gear Ratio 1.81:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 2.00:1
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40.6 cm 50.8 cm 3175–3810 kg 7.9–8.8 m 64–76 kph
(16 in.) (20 in.) 3 Stainless Steel (7000–8400 lb) (26–29 ft) (40–47 mph)
36.5 cm 50.8 cm 3 Stainless Steel 3175–3810 kg 7.9–8.8 m 64–76 kph
(14.38 in.) (20 in.) (7000–8400 lb) (26–29 ft) (40–47 mph)
40 cm 55.9 cm 2858–3311 kg 7.6–8.5 m 72–84 kph
(15.75 in.) (22 in.) 3 Stainless Steel (6300–7300 lb) (25–28 ft) (45–52 mph)
36.2 cm 55.9 cm 2858–3311 kg 7.6–8.5 m 72–84 kph
(14.25 in.) (22 in.) 3 Stainless Steel (6300–7300 lb) (25–28 ft) (45–52 mph)
39.4 cm 61 cm 3 Stainless Steel 2540–2948 kg 7.3–8.2 m 81–92 kph
(15.5 in.) (24 in.) (5600–6500 lb) (24–27 ft) (50–57 mph)
36.2 cm 61 cm 2540–2948 kg 7.3–8.2 m 81–92 kph
(14.25 in.) (24 in.) 3 Stainless Steel (5600–6500 lb) (24–27 ft) (50–57 mph)
38.7 cm 66 cm 3 Stainless Steel 2313–2631 kg 7.3–7.9 m 89–100 kph
(15.25 in.) (26 in.) (5100–5800 lb) (24–26 ft) (55–62 mph)
35.6 cm 66 cm 3 Stainless Steel 2313–2631 kg 7.3–7.9 m 89–100 kph
(14 in.) (26 in.) (5100–5800 lb) (24–26 ft) (55–62 mph)
38.1 cm 71.1 cm 2132–2404 kg Up to 7.6 m 97–108 kph
(15 in.) (28 in.) 3 Stainless Steel (4700–5300 lb) (25 ft) (60–67 mph)
34.9 cm 71.1 cm 3 Stainless Steel 2132–2404 kg Up to 7.6 m 97–108 kph
(13.75 in.) (28 in.) (4700–5300 lb) (25 ft) (60–67 mph)

Page 4B-20 © 2019 Mercury Marine 90-8M0149179 eng NOVEMBER 2018
