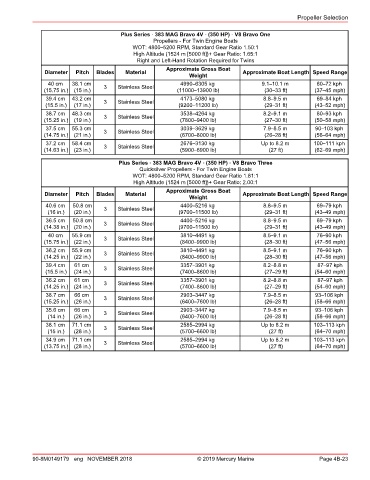

Propeller Selection

Plus Series ‑ 383 MAG Bravo 4V ‑ (350 HP) ‑ V8 Bravo One
Propellers ‑ For Twin Engine Boats
WOT: 4800–5200 RPM, Standard Gear Ratio 1.50:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 1.65:1
Right and Left‑Hand Rotation Required for Twins
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40 cm 38.1 cm 4990–6305 kg 9.1–10.1 m 60–72 kph
(15.75 in.) (15 in.) 3 Stainless Steel (11000–13900 lb) (30–33 ft) (37–45 mph)
39.4 cm 43.2 cm 3 Stainless Steel 4173–5080 kg 8.8–9.5 m 69–84 kph
(15.5 in.) (17 in.) (9200–11200 lb) (29–31 ft) (43–52 mph)
38.7 cm 48.3 cm 3538–4264 kg 8.2–9.1 m 80–93 kph
(15.25 in.) (19 in.) 3 Stainless Steel (7800–9400 lb) (27–30 ft) (50–58 mph)
37.5 cm 55.3 cm 3 Stainless Steel 3039–3629 kg 7.9–8.5 m 90–103 kph
(14.75 in.) (21 in.) (6700–8000 lb) (26–28 ft) (56–64 mph)
37.2 cm 58.4 cm 2676–3130 kg Up to 8.2 m 100–111 kph
(14.63 in.) (23 in.) 3 Stainless Steel (5900–6900 lb) (27 ft) (62–69 mph)

Plus Series ‑ 383 MAG Bravo 4V ‑ (350 HP) ‑ V8 Bravo Three
Quicksilver Propellers ‑ For Twin Engine Boats
WOT: 4800–5200 RPM, Standard Gear Ratio 1.81:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 2.00:1
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40.6 cm 50.8 cm 4400–5216 kg 8.8–9.5 m 69–79 kph
(16 in.) (20 in.) 3 Stainless Steel (9700–11500 lb) (29–31 ft) (43–49 mph)
36.5 cm 50.8 cm 3 Stainless Steel 4400–5216 kg 8.8–9.5 m 69–79 kph
(14.38 in.) (20 in.) (9700–11500 lb) (29–31 ft) (43–49 mph)
40 cm 55.9 cm 3810–4491 kg 8.5–9.1 m 76–90 kph
(15.75 in.) (22 in.) 3 Stainless Steel (8400–9900 lb) (28–30 ft) (47–56 mph)
36.2 cm 55.9 cm 3 Stainless Steel 3810–4491 kg 8.5–9.1 m 76–90 kph
(14.25 in.) (22 in.) (8400–9900 lb) (28–30 ft) (47–56 mph)
39.4 cm 61 cm 3357–3901 kg 8.2–8.8 m 87–97 kph
(15.5 in.) (24 in.) 3 Stainless Steel (7400–8600 lb) (27–29 ft) (54–60 mph)
36.2 cm 61 cm 3357–3901 kg 8.2–8.8 m 87–97 kph
(14.25 in.) (24 in.) 3 Stainless Steel (7400–8600 lb) (27–29 ft) (54–60 mph)
38.7 cm 66 cm 3 Stainless Steel 2903–3447 kg 7.9–8.5 m 93–106 kph
(15.25 in.) (26 in.) (6400–7600 lb) (26–28 ft) (58–66 mph)
35.6 cm 66 cm 2903–3447 kg 7.9–8.5 m 93–106 kph
(14 in.) (26 in.) 3 Stainless Steel (6400–7600 lb) (26–28 ft) (58–66 mph)
38.1 cm 71.1 cm 3 Stainless Steel 2585–2994 kg Up to 8.2 m 103–113 kph
(15 in.) (28 in.) (5700–6600 lb) (27 ft) (64–70 mph)
34.9 cm 71.1 cm 2585–2994 kg Up to 8.2 m 103–113 kph
(13.75 in.) (28 in.) 3 Stainless Steel (5700–6600 lb) (27 ft) (64–70 mph)

90-8M0149179 eng NOVEMBER 2018 © 2019 Mercury Marine Page 4B-23
