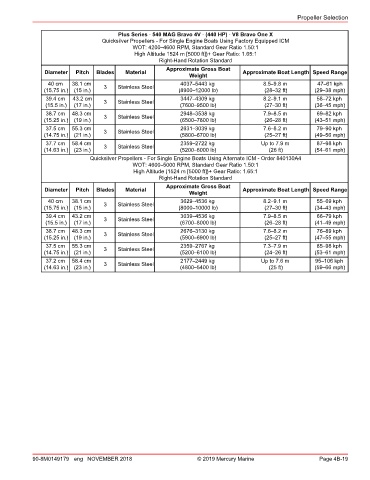

Propeller Selection
Plus Series ‑ 540 MAG Bravo 4V ‑ (440 HP) ‑ V8 Bravo One X
Quicksilver Propellers ‑ For Single Engine Boats Using Factory Equipped ICM
WOT: 4200–4600 RPM, Standard Gear Ratio 1.50:1
High Altitude 1524 m [5000 ft])+ Gear Ratio: 1.65:1
Right‑Hand Rotation Standard
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40 cm 38.1 cm 4037–5443 kg 8.5–9.8 m 47–61 kph
(15.75 in.) (15 in.) 3 Stainless Steel (8900–12000 lb) (28–32 ft) (29–38 mph)
39.4 cm 43.2 cm 3 Stainless Steel 3447–4309 kg 8.2–9.1 m 58–72 kph
(15.5 in.) (17 in.) (7600–9500 lb) (27–30 ft) (36–45 mph)
38.7 cm 48.3 cm 2948–3538 kg 7.9–8.5 m 69–82 kph
(15.25 in.) (19 in.) 3 Stainless Steel (6500–7800 lb) (26–28 ft) (43–51 mph)
37.5 cm 55.3 cm 3 Stainless Steel 2631–3039 kg 7.6–8.2 m 79–90 kph
(14.75 in.) (21 in.) (5800–6700 lb) (25–27 ft) (49–56 mph)
37.7 cm 58.4 cm 2359–2722 kg Up to 7.9 m 87–98 kph
(14.63 in.) (23 in.) 3 Stainless Steel (5200–6000 lb) (26 ft) (54–61 mph)
Quicksilver Propellers ‑ For Single Engine Boats Using Alternate ICM ‑ Order 840130A4
WOT: 4600–5000 RPM, Standard Gear Ratio 1.50:1
High Altitude (1524 m [5000 ft])+ Gear Ratio: 1.65:1
Right‑Hand Rotation Standard
Approximate Gross Boat
Diameter Pitch Blades Material Approximate Boat Length Speed Range
Weight
40 cm 38.1 cm 3 Stainless Steel 3629–4536 kg 8.2–9.1 m 55–69 kph
(15.75 in.) (15 in.) (8000–10000 lb) (27–30 ft) (34–43 mph)
39.4 cm 43.2 cm 3039–4536 kg 7.9–8.5 m 66–79 kph
(15.5 in.) (17 in.) 3 Stainless Steel (6700–8000 lb) (26–28 ft) (41–49 mph)
38.7 cm 48.3 cm 2676–3130 kg 7.6–8.2 m 76–89 kph
(15.25 in.) (19 in.) 3 Stainless Steel (5900–6900 lb) (25–27 ft) (47–55 mph)
37.5 cm 55.3 cm 3 Stainless Steel 2359–2767 kg 7.3–7.9 m 85–98 kph
(14.75 in.) (21 in.) (5200–6100 lb) (24–26 ft) (53–61 mph)
37.2 cm 58.4 cm 2177–2449 kg Up to 7.6 m 95–106 kph
(14.63 in.) (23 in.) 3 Stainless Steel (4800–5400 lb) (25 ft) (59–66 mph)
90-8M0149179 eng NOVEMBER 2018 © 2019 Mercury Marine Page 4B-19
