Joystick and Electric Steering

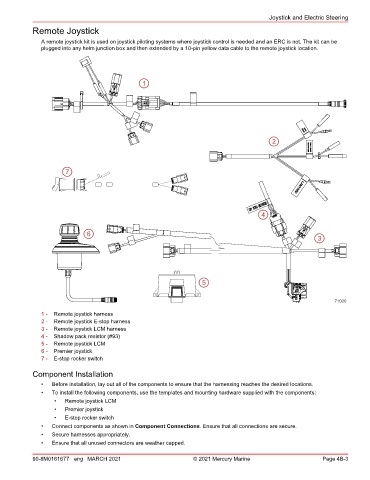

Remote Joystick

A remote joystick kit is used on joystick piloting systems where joystick control is needed and an ERC is not. The kit can be
plugged into any helm junction box and then extended by a 10‑pin yellow data cable to the remote joystick location.

1

2

7

4

6
3

5

71020
1 - Remote joystick harness
2 - Remote joystick E‑stop harness
3 - Remote joystick LCM harness
4 - Shadow pack resistor (#93)
5 - Remote joystick LCM
6 - Premier joystick
7 - E‑stop rocker switch

Component Installation
• Before installation, lay out all of the components to ensure that the harnessing reaches the desired locations.
• To install the following components, use the templates and mounting hardware supplied with the components:
• Remote joystick LCM
• Premier joystick
• E‑stop rocker switch
• Connect components as shown in Component Connections. Ensure that all connections are secure.
• Secure harnesses appropriately.
• Ensure that all unused connectors are weather capped.

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 4B-3
