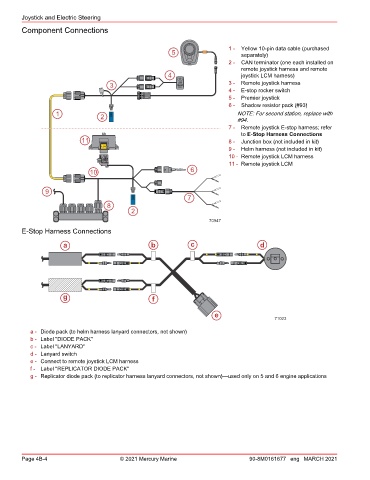

Joystick and Electric Steering
Component Connections
1 - Yellow 10‑pin data cable (purchased
5 separately)
2 - CAN terminator (one each installed on
remote joystick harness and remote
4 joystick LCM harness)
3 3 - Remote joystick harness
4 - E‑stop rocker switch
5 - Premier joystick
6 - Shadow resistor pack (#93)
1 2 NOTE: For second station, replace with
#94.
7 - Remote joystick E‑stop harness; refer
to E‑Stop Harness Connections
11 8 - Junction box (not included in kit)
9 - Helm harness (not included in kit)
LCM
10 - Remote joystick LCM harness
11 - Remote joystick LCM
10 6
9
7
8
2
70947
E-Stop Harness Connections
a b c d
g f
e
71023
a - Diode pack (to helm harness lanyard connectors, not shown)
b - Label "DIODE PACK"
c - Label "LANYARD"
d - Lanyard switch
e - Connect to remote joystick LCM harness
f - Label "REPLICATOR DIODE PACK"
g - Replicator diode pack (to replicator harness lanyard connectors, not shown)—used only on 5 and 6 engine applications
Page 4B-4 © 2021 Mercury Marine 90-8M0161677 eng MARCH 2021
