Stern Architecture Diagrams

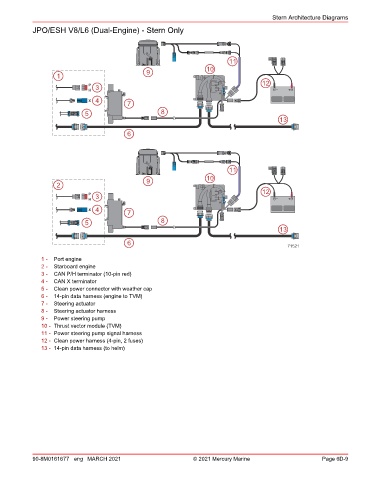

JPO/ESH V8/L6 (Dual‑Engine) ‑ Stern Only

11
9 10
1
12
P 3
H
X 4
7
5 8
13

6

11

9 10
2
12
P 3
H
X 4
7
5 8
13

6 71521

1 - Port engine
2 - Starboard engine
3 - CAN P/H terminator (10‑pin red)
4 - CAN X terminator
5 - Clean power connector with weather cap
6 - 14‑pin data harness (engine to TVM)
7 - Steering actuator
8 - Steering actuator harness
9 - Power steering pump
10 - Thrust vector module (TVM)
11 - Power steering pump signal harness
12 - Clean power harness (4‑pin, 2 fuses)
13 - 14‑pin data harness (to helm)

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 6D-9
