Stern Architecture Diagrams
1 - Port engine 11 - Steering actuator harness
2 - Port inner engine 12 - Gray (no CAN P/H) 14‑pin data harness (to helm)
3 - Starboard inner engine 13 - 14‑pin data harness (engine to TVM)
4 - Starboard engine 14 - Power steering pump
5 - CAN X terminator 15 - Thrust vector module (TVM)
6 - Clean power connector with weather cap 16 - Power steering pump signal harness
7 - CAN link harness (10‑pin) 17 - Clean power harness (4‑pin, 2 fuses)
8 - CAN Y‑harness (10‑pin) 18 - 14‑pin data harness (to helm)
9 - CAN P/H terminator (10‑pin red) 19 - Clean power T‑harness (4‑pin)
10 - Steering actuator
JPO/ESH 450R

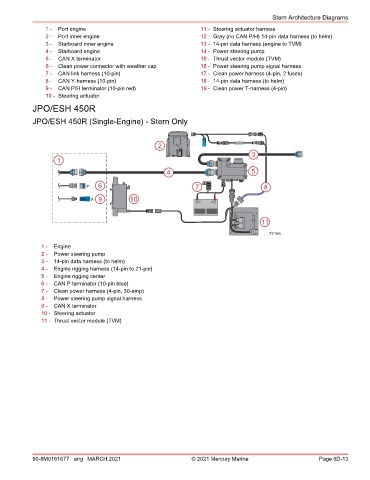

JPO/ESH 450R (Single‑Engine) ‑ Stern Only

2
3
1

4 5

P 6 7 8
X 9 10

11

72166
1 - Engine
2 - Power steering pump
3 - 14‑pin data harness (to helm)
4 - Engine rigging harness (14‑pin to 21‑pin)
5 - Engine rigging center
6 - CAN P terminator (10‑pin blue)
7 - Clean power harness (4‑pin, 30‑amp)
8 - Power steering pump signal harness
9 - CAN X terminator
10 - Steering actuator
11 - Thrust vector module (TVM)

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 6D-13
